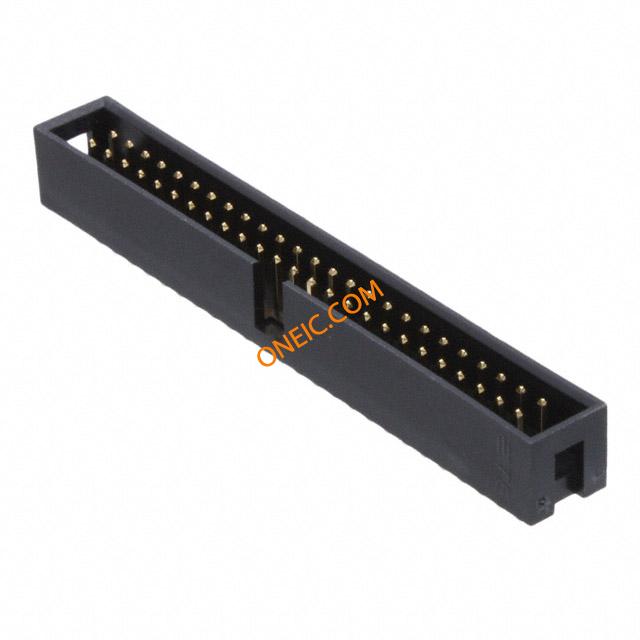

5-1634688-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 50POS .100 VERT GOLD TE Connectivity 5-1634688 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings BOX HEADER VERT 50P Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 50WAY StraightIDCboxedheader,50-way Pin header DIN 41651 50P, 5-1634688-0, TE Connectivity |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 1200 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 介电强度 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Black | 深度 | 9 mm |
| 间距 | 2.54 mm | 高度 | 8.95 mm |
| 重量 | 0.0582 | 材料（通用） | :Polyester |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 71.15 mm |
| 主要材料 | PCB | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 50 | 接触件端接 | :Through Hole Vertical |
| 位数 | 50 | 接触长度 - 配合 | 0.228" (5.80mm) |
| 端子柱长度 | 3.02 mm | 接触镀层厚度 | 10µin (0.25µm) |
| 第一连接器安装类型 | :Straight | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 5-1634688 | 制造商全称 | 5-1634688Series |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 40 C to + 105 C | ||
文档与媒体
相关型号
1-1658622-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,50way Headers & Wire Housings 50PIN RIB CBL RCPT Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50position,Gold(30);LeadFree TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 50 NOVO MIL/CTR 30DP,LEAD FREE
1-1658623-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE

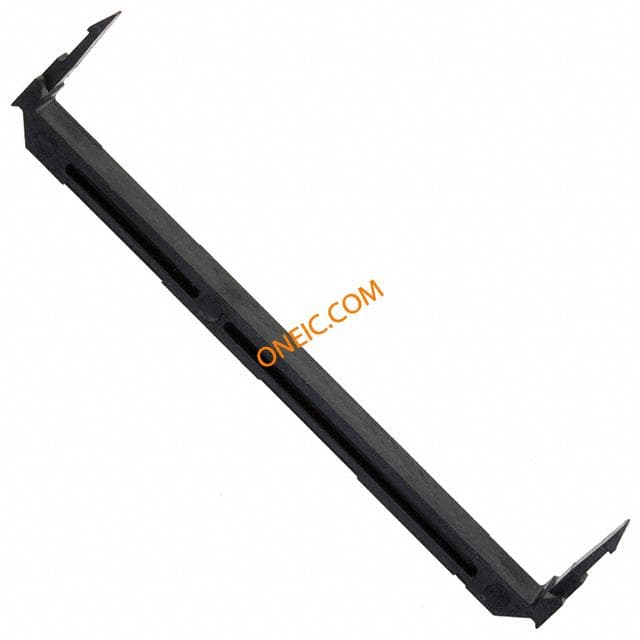

499252-4
