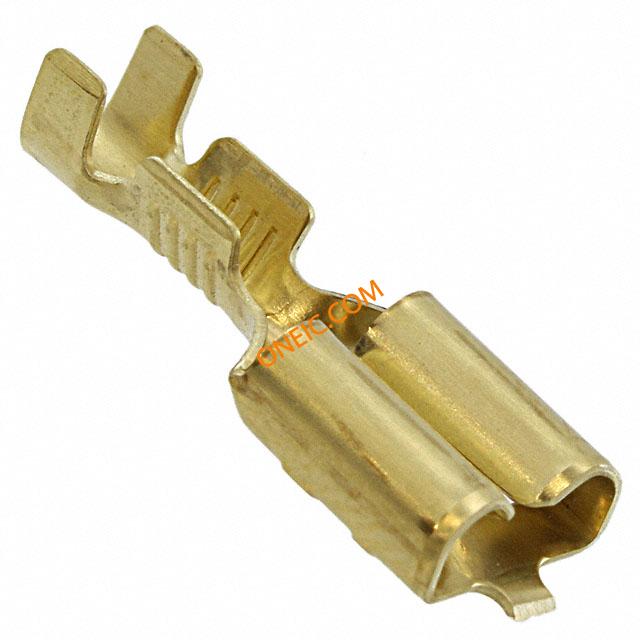

5-160558-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 15-20AWG RCP 19.9mm 7.4mm Tin Strip Terminals RECPT 6.35 x 0.81 mm Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT F-CRIMP STRAIGHT FASTIN-FASTON, female, 6.35x0.81 Receptacle contact, FASTIN-FASTON (REEL) Quick Disconnect Terminal 15-20AWG RCP 19.9mm 7.4mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmWire Range = 0.50-1.50² [20-15.5] mm [AWG]Insulation Diameter = 2.30-3.30 [.091-.129] mm [in]Receptacle Style = StraightSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on Receptaclecontact,FASTIN-FASTON(REEL) TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FF 250 REC 0.5-1.5MM2 TPPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107127CT |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 最大电压 | 250 | 最大频率 | Single |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Tin | 长度 | 19.4mm |
| 材料（通用） | Phosphor Bronze | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.307" (7.80mm) |
| 导线线规 | 15.5-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 1.5mm² |
| 电缆材料 | Yes | 连接器类型 | Yes |
| 接触镀层 | Tin | 封装形式 | Multiple |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 厚度（最大） | 0.41 [0.016] |
| 触头材料 | Phosphor Bronze | 总长度 | FASTIN-FASTON .250 |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | With | 端接样式 | 母端 |
| 适用端子尺寸 | 2.3 – 3.3 mm [ .091 – .129 in ] | 绝缘直径 | 2.30-3.30 [.091-.129] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 堆叠高度（配合） | .043 |
| 线规或范围 - AWG | 15AWG | 线规或范围 - mm² | 0.50-1.50² [20-15.5] |
产品信息
| 备注 | With dimple; According to DIN 46340, Part 3; Chamfered | 连接器性别 | Female |
| 系列 | 250 | 产品子类型 | Receptacle |
环境参数
| 工作温度 | 130 | ||
