点击放大查看

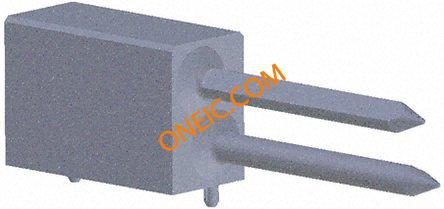

5-1469372-5
| 制造商 | |
| 描述 | Connector Accessories Guide Module Zinc Alloy Nickel Over Copper ATCA Power Connectors and Hardware ATCA GUIDE MODULE RA MALE Guide Module r/a Male ATCA Micro TCA Connectors ATCA GUIDE MODULE RA MALE Connector Accessories Guide Module Zinc Alloy Nickel Over Copper Product Highlights:Guide ModuleAdvancedATCA ApplicationMaleInserts = WithoutVertical Mount AngleSearch Keywords:Advanced Telecommunications Computer Architecture, high speed, PICMG 3.0, motherboard-to-daughtercard, co-planar, power, two piece, board to board, horizontal, pcb connectors, card edge, ATCA, AMC, Advanced Mezzanine Card GUIDE MODULE, ATCA, RA, MALE GUIDE MODULE, ATCA POWER CONNECTORS GuideModuler/aMaleATCA |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 插入损耗 | Without | ||
机械参数
| 深度 | 10mm | 表面处理 | Nickel |
| 高度 | 14.5mm | 长度 | 22mm |
| 重量 | 0.05 | 材料（通用） | Zinc Alloy |
| 包装方式 | Bulk | 安装类型 | Vertical |
| 连接器类型 | :Guide Module | 接触镀层 | Nickel over Copper |
| 位数 | 5, 5 | ||
产品信息
| 备注 | Hardware not supplied | 类型 | Guide Module |
| 连接器性别 | Male | 系列 | :MULTIGIG |
| 安装位置 | Rear Transition | 制造商全称 | Tyco Electronics |
| 产品子类型 | Guide Module | 附件类型 | Guide Module |
| 规格说明 | Type A2 | 固件版本 | A2 |
| 射频系列/标准 | 1469372 | 适用产品/相关产品 | AdvancedTCA Series |
