点击放大查看

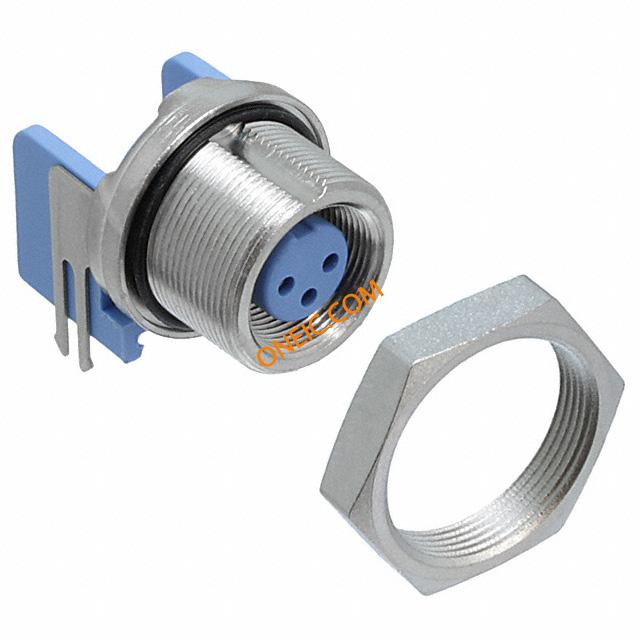

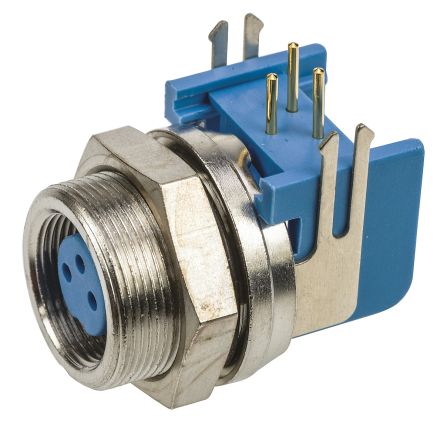

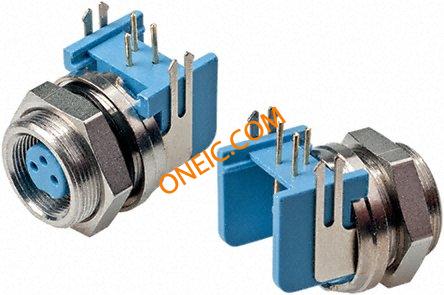

5-1437719-4
| 制造商 | |
| 描述 | Conn Shielded Circular Subminiature SKT 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 3POS SLD PNL R/A 3 Pole Male Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector SOCKET PCB 3P R/A 3A Conn Shielded Circular Subminiature SKT 3 POS Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:Header3 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, Connector: circular; socket; female; PIN:3; gold plated; 3A; IP65 TE Connectivity TRIAD™ 01 系列 3路 通孔 直角 连接器 插座 T01-0560-S03-FEMALE REC PANEL-PCB MNT RA |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN 40050 |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 测试电压 | 625V | 额定电压 | 60VAC |
| 供电电压 | 60 | 连接器阻抗 | 超小型 |
| 最大额定电流 | 3A | ||
机械参数
| 密封型 | 否 | 重量 | 0.05 g |
| 包装方式 | Bulk | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 紧固类型 | Threaded | 安装样式 | screwed |
| 锁定特性 | threaded joint | 壳体材料 | CuZn |
| 总长度 | 19.2 | 包装数量 | 25 |
| 尺寸/外形 | see | 端接排数 | 焊接 |
| 连接器 - 电缆 | socket | 端接样式 | 插座 |
| 第一触头极性 | Female | 触点数 | 3 |
| 位数 | 3 | 镀层厚度（通用） | 4µm |
| 外壳材料及表面处理 | Brass, Tribor Plated | 触点材料 - 镀层 | gold plated |
产品信息
| 类型 | Shielded Circular Subminiature | 连接器性别 | HDR |
| 系列 | Triad | 产品特性 | Board Lock, Shielded |
| 可密封 | 是 | 产品子类型 | Connectors |
| 适配器系列 | TRIAD 01 | 单元数量 | 1 |
环境参数
| 机械寿命 | 500cycles | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
