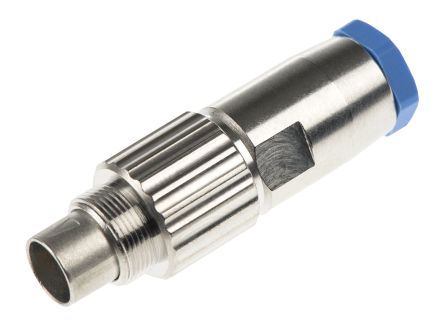

1-1437719-5
| 制造商 | |
| 描述 | Conn Shielded Circular Subminiature PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port Standard Circular Connector PIN 3 POS 3A SOLDER Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 3POS SLD CUP STR 3 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Conn Shielded Circular Subminiature PIN 3 POS Solder ST Cable Mount 3 Terminal 1 Port Product Highlights:Connector3 ContactsPinContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE Connector: circular; plug; male; PIN:3; gold plated; 3A; IP65; 4um TE Connectivity TRIAD™ 01 系列 3路 电缆安装 直向 连接器 插头 T01-0550-P03-MALE PLUG CONNECTOR SOLDER |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | DIN 40050 |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-2 |
电气参数
| 测试电压 | :500V | 额定电压 | 60VAC |
| 工作电压 | :60V | 接触电阻 | :5mohm |
| 最大额定电流 | 3 A | ||
机械参数
| 重量 | 0.016 | 包装方式 | Bulk |
| 出线方向 | Yes | 导线线规 | :0.14mm² |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | :Gold |
| 紧固类型 | Threaded | 安装样式 | screwed |
| 插入角度 | :- | 锁定特性 | threaded joint |
| 本体材料 | :Brass | 面板厚度 | :4mm |
| 触头材料 | :- | 包装数量 | 2 |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 3 |
| 接触件端接 | :Solder | 位数 | 3 |
| 镀层厚度（通用） | 4µm | 外壳尺寸-插件 | :- |
| 最大电缆长度 | 0.25mm2 | 外壳材料及表面处理 | Brass, Tribor Plated |
| 线规或范围 - mm² | :0.25mm² | 触点材料 - 镀层 | gold plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 2 | 类型 | Shielded Circular Subminiature |
| 连接器性别 | PL | 系列 | Super Seal |
| 产品特性 | Shielded, Strain Relief | 产品子类型 | Connectors |
| 适配器系列 | TRIAD 01 | 单元数量 | 1 |
环境参数
| 插拔次数 | :500 | 机械寿命 | 500cycles |
| NEMA 机架尺寸 | :IP65 | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
