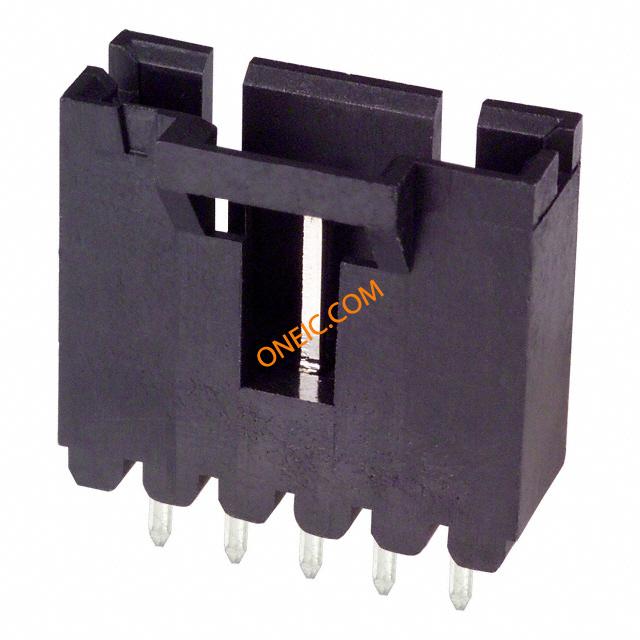

5-103639-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 5POS PCB TIN Headers & Wire Housings HDR PIN 1X05C VRT Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHEADERASSY,05MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 5路 2.54mm节距 (1排) 直 PCB 针座 , 焊接端接, 3A, 通孔 05 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 35 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 开关功能 | Latched |
| 接触电阻 | 15 mohm | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 6.98 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 长度 | 15.24 mm [ .6 in ] | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | 直角 |
| 方向 | 直 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 [.100] | 极化 | Latched |
| 触点形状 | Square | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Tin Over Nickel | 触点时序 | Without |
| 安装样式 | Thru Hole | 排数 | 1 |
| 壳体镀层 | Tin | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 15.24 mm | 安装特性 | 压具 |
| 包装数量 | Tube | 面板安装类型 | 垂直 |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接排数 | 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | With |
| 触点数 | 5 | 端接表面处理 | 带有 |
| 位数 | 5 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Use Keying Tool No. 91417-1 to remove post for keying. | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | MTE |
| 覆盖范围 | 覆盖 | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
