487526-4

点击放大查看

487526-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 5POS.100 SLIM W/LATCH FFC .100,housing,rcp,2.54mm,5way FFC & FPC Connectors 100X100 REC 1X05P Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 5Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 5POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,5POS,2.54MM,SLIMLINE,SINGLER TE Connectivity 2.54mm 节距 5 路 直 母 PCB 壳体 005 HOUSING FFC RCPT 100CL SR
分类
连接器解决方案FFC/FPC连接器FFC/FPC连接器
对参数有疑问？问 AI 助手

商业参数

其他名称4875264产品类别FFC & FPC Connectors
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级Yes

电气参数

额定电压300V最大额定电流2A
最小供电电压300VAC

机械参数

颜色Black深度13.72mm
间距2.54 mm长度12.54mm
重量0.002包装方式Bulk
第二连接器With安装类型Straight
连接器类型Slimline接触镀层:-
安装样式Cable排数1
连接器用途Receptacle锁定特性Latch
总宽度:0.494"触头材料:-
壳体材料Thermoplastic总长度2.54 [0.100]
安装特性Without面板安装类型Without
主要材料FFCFFC/FCB厚度0.05-0.13mm
配接方向Without触点数5
接触件端接:-位数5

产品信息

类型Housing连接器性别RCP
系列487526产品特性Latch Lock
制造商全称AMP/Slimline产品子类型Housing
连接类型FFC Cable适用产品/相关产品Centerline Flexible Film Connector

环境参数

工作温度-65°C ~ 105°C

文档与媒体

在线文档
487526-4?RQPN=487526-4
在线文档
TE.Connect?C=1&M=BYPN&TCPN=487526-4&RQPN=487526-4

相关型号

103639-4

103639-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 5POS PCB TIN Headers & Wire Housings LTCH HDR W/O SWAGE 5 Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 05 MTE HDR SRST LATCH .100CL

¥5.7800
详情
5-103904-4

5-103904-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 5POS 30AU Header horizontal 5 way pin AmpModu Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Headerhorizontal5waypinAmpModu TE Connectivity AMPMODU MTE 系列 2.54mm节距 5路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 5 MTE HDR SRRA LATCH W/HLDWN

¥3.7400
详情
103638-4

103638-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 5POS 15AU Headers & Wire Housings LTCH HDR W/O SWAGE 5 Conn Shrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHEADERASSY,05MTEHDRSRSTLATCH.100CL 05 MTE HDR SRST LATCH .100CL

¥2.5704
详情
104361-4

104361-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 5POS 15AU Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 05 MTE HDR SRRA LATCH W/HLDWN

¥3.7400
详情
103673-4

103673-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 5POS 15AU Headers & Wire Housings LATCHING HDR SHRD 5P with hold down Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AA/WHD,05MTEHDRSRRALATCHW/HLDWN 05 MTE HDR SRRA LATCH W/HLDWN

¥4.6240
详情
103672-4

103672-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 5POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 5P with hold down 05 MTE HDR SRRA LATCH W/HLDWN

¥1.9040
详情
147323-4

147323-4

te connectivity / amp

Conn Shrouded Header HDR 5 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 5POS SL R/A SMD AU Headers & Wire Housings 05 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 5Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;5;3A;600V;MTE(IDC);1;RightAngle;0.100in.;5000Megohms 05 MTE HDR SRRA SMT.100CL

¥16.2398
详情

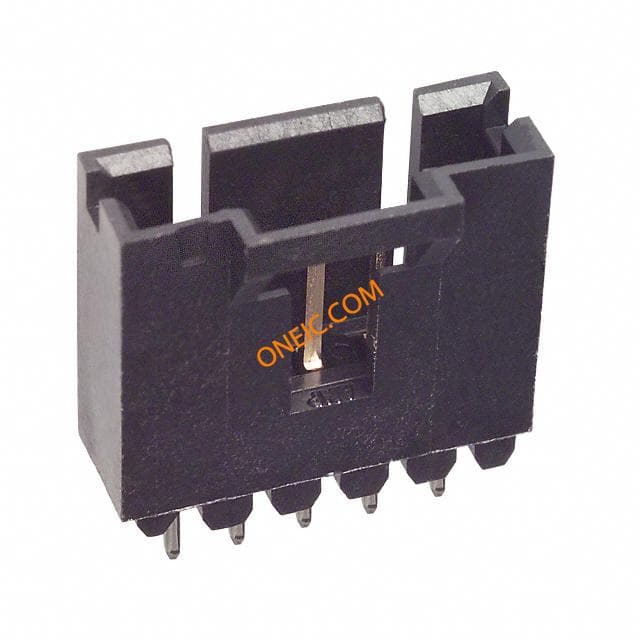

5-104362-4
