494033-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Flexible Film Contacts CONN CONTACT PIN 22-24AWG FFC FFC & FPC Connectors FFC,PIN CONTACT ROUND WIRE,22 FFC,PIN CONTACT,ROUND WIRE,22- FFC,PIN CONTACT,ROUND WIRE,22- Search Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, |
| 分类 |
商业参数
| 标准包装规格 | 10,000 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 10000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 连接器阻抗 | 刺破式压接 (IDC) | ||
机械参数
| 间距 | 2.54 mm [ .1 in ] | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | Round Wire, Discrete | 导线线规 | 22-24 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Gold | 插入件材料 | 磷青铜 |
| 总长度 | 2.54 [0.100] | 框架材料 | 镍 |
| 包装数量 | Strip | 端接样式 | 插针 |
| 接触件端接 | Crimp | 绝缘直径 | 1.02 â 1.42 [0.040 â 0.056] |
| 接触镀层厚度 | 15µin (0.38µm) | 线规或范围 - mm² | 0.20-0.40² [24-22] |
产品信息
| 制造商 | 1.27, 1.65 | 备注 | Crimp Control Monitor 567561-2 for AMP-O-LECTRIC.; Crimp Control Monitor 567561 |
| 连接器性别 | PIN | 系列 | AMP |
| 产品子类型 | Contacts | ||
相关型号

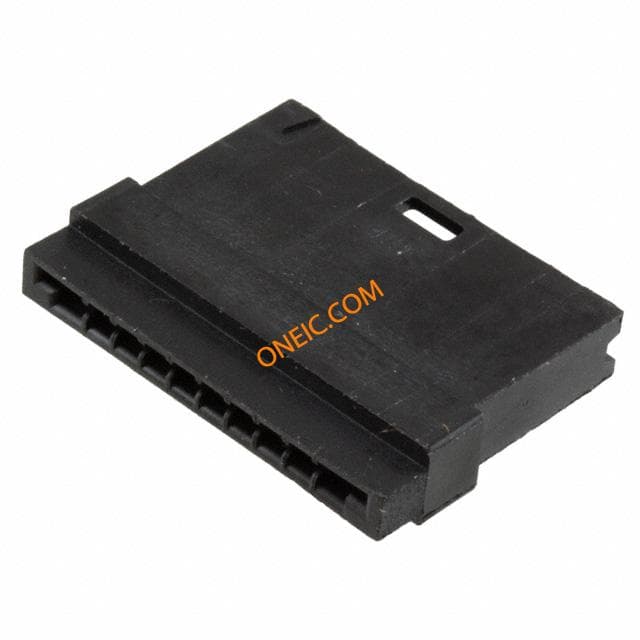

485893-8
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Flexible Film Connectors 010 HOUSING FFC PIN 100CL SR FFC & FPC Connectors 100X100 FFC HSG PLG 1X10P 485893-8 Conn Housing RCP 10 POS 2.54mm Crimp ST Product Highlights:Housing2.54 mm CenterlineConnector Type = Standard10 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector

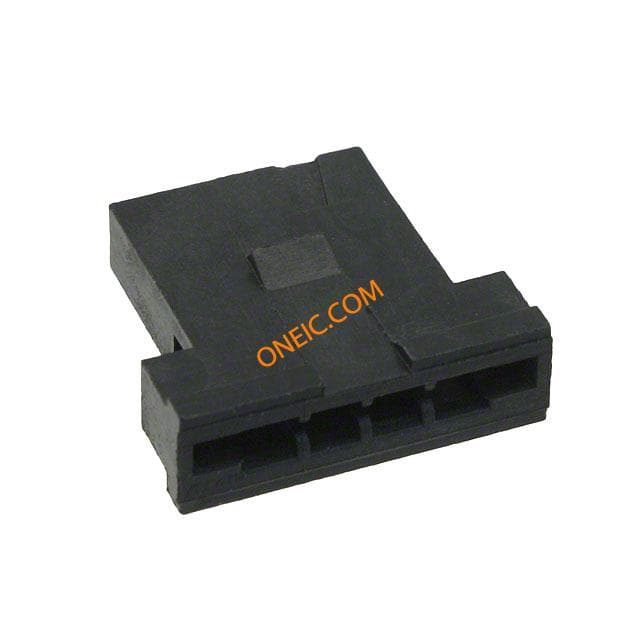

1-88859-0
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 004 HOUSING FFC RCPT SR 100CL TE Connectivity 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Crimp Termination, 2A FFC & FPC Connectors 004 HOUSING FFC RCPT Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 4Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 4POS, 1ROW Connector4wayreceptacleFFC TE Connectivity 2.54mm节距 4路 (1排) 直 外壳, 压接端接, 2A
3-88189-0
te connectivity / amp
Conn Housing PL 10 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PLUG 10POS W/DETENT FFC FFC & FPC Connectors 010 HOUSING FFC PIN Conn Housing PL 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 10Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 010 HOUSING FFC PIN DR 100CL
2-88637-9
te connectivity / amp
FLEXIBLE FILM CONNECTORS Flexible Film Connectors CONN HOUSING STANDARD DUAL 58POS FFC & FPC Connectors 058 HOUSING FFC RCPT DR 100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 58Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 058 HOUSING FFC RCPT DR 100CL
1-485893-1
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN PIN 13POS HOUSING FFC .100 FFC & FPC Connectors 013 HOUSING FFC PIN 100CL SR Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 13Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 013 HOUSING FFC PIN 100CL SR
88859-5
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 13POS HOUSING FFC .100 FFC & FPC Connectors 013 HOUSING FFC RCPT SR 100CL Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 13Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 013 HOUSING FFC RCPT SR 100CL

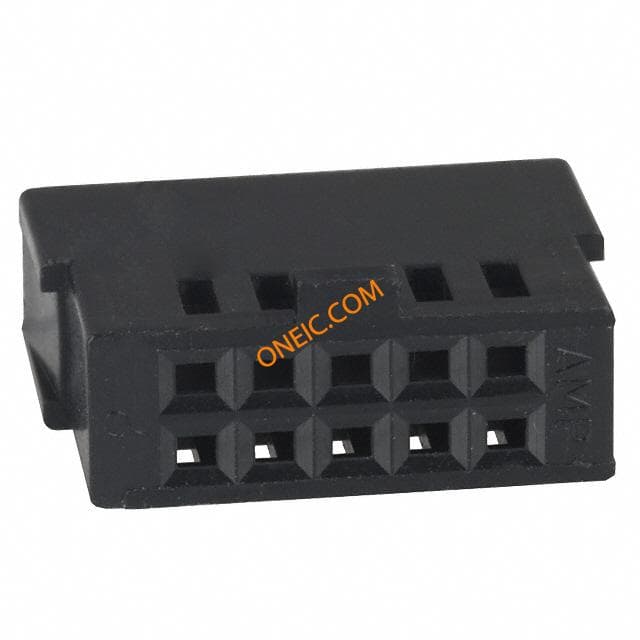

487223-1
