点击放大查看
41532
| 制造商 | |
| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.01mm Tin Strip Terminals .25 FLG FAST 18-12 CONN RECPT FLG FAST 12-18AWG.250 Quick Disconnect Terminal 12-18AWG RCP 17.01mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FSTPREMFLGRCPTSTP,250FLGFASTREC18-12TPBR FASTON 250(6.3MM)FLAG REC 18-12 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27606CT |
| 零件号别名 | 42015 | 产品类别 | Terminals |
| 标准包装数量 | 4,000 | 工厂包装数量 | 4000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 抗辐射加固 | No | 认可国家 | 是 |
电气参数
| 核心类型 | Open | 最大频率 | Multiple |
机械参数
| 颜色 | Not Required | 深度 | 7.65 mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-12 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line), Right Angle | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 普通 |
| 触头材料 | Brass | 总长度 | 17.01 mm |
| 包装数量 | 4000 | 端接样式 | Crimp |
| 适用端子尺寸 | 2.79 – 5.33 mm [ .11 – .21 in ] | 绝缘直径 | 0.110" ~ 0.210" (2.79mm ~ 5.33mm) |
| 绝缘材料 - 类型 | No | 总厚度 | .439 mm [ .017 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 接触镀层厚度 | 40 | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | 已删除 | Compliant |
文档与媒体
相关型号
1-480307-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece Headers & Wire Housings .250 NYL-HSG 01 NAT STYLE A FASTON Uninsulated Receptacles & Housings CONN RECPT FLG HOUSING NATURAL Terminals .250 NYL-HSG 01 NAT STYLE A Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING HOUSING, RECEPTACLE, FASTON, R/A, 1WAY FASTONINSSLV&CVR,FLG-FASTINSULPODLPR480298 1 Position 6.35 mm Faston Uninsulated Receptacle & Housing TE Connectivity FASTON .250 系列 1 触点 尼龙 压接端子外壳
180984
TE Connectivity AMP Connectors
Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Natural Loose Piece Headers & Wire Housings 1P HSG FAST TAB .250 CONN HOUSING FAST TAB 1POS .250 Opaque insulation boot for 6.3mm flag Terminals 1P HSG FAST TAB .250 Connector Accessories Insulation Boot 1 POS Polyamide 6.6 Natural Loose Piece Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING COVER, FASTON, FLAG, NATURAL, PK10 FASTONINSULATORFLAG Terminals cover; female; for push-on 6.3mm connectors; natural TE Connectivity FASTON .250 系列 尼龙 66 压接外罩
1-480307-6
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece FASTON Uninsulated Receptacles & Housings CONN RCPT FLG HSG .250 1POS Terminals FLG-FAST INSUL POD LP R 480298 Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING
1-480307-7
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Cable Mount Loose Piece FASTON Uninsulated Receptacles & Housings CONN HOUSING 1POS NATURAL FASTON Terminals FLAG,FASTON INSUL POD LP FASTON Uninsulated Receptacles & Housings Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING
1-480298-0
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Strip FASTON Uninsulated Receptacles & Housings CONN HOUSING 1POS NATURAL FASTON Headers & Wire Housings FLG-FAST PINSUL POD Conn Housing RCP 1 POS Crimp ST Strip Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING
170891-1
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE FLAG .250 FASTON .250,Connector sleeve,natural Terminals SLEEVE FOR 250 F FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation SleeveInsulation Diameter = 3.20 [.126] Max. mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity 18.5mm 压接端子盖
170891-2
te connectivity / amp
Connector Accessories Insulation Sleeve Soft Soft Vinyl Chloride Clear Loose Piece FASTON Uninsulated Receptacles & Housings CONN INSULATION SLEEVE FLAG .250 Faston 110,connector sleeve,natural,18mm Terminals SLEEVE FOR 250 F Connector Accessories Insulation Sleeve Soft Soft Vinyl Chloride Clear Loose Piece Product Highlights:Insulation SleeveInsulation Diameter = 4.80 [.189] mm [in]Soft Vinyl Chloride MaterialHousing Color = NaturalLine = FASTON .250Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONNECTORSLEEVE,NATURAL TE Connectivity 18.5mm 压接端子盖
7-180984-0
te connectivity / amp
Connector Accessories Insulation Boot Polyamide 6.6 Natural Loose Piece FASTON Uninsulated Receptacles & Housings FLAG FASTON BOOT .250 SERIES Headers & Wire Housings FLAG FASTON BOOT .250 SERIES FASTON Uninsulated Receptacles & Housings Product Highlights:Insulation BootNumber of Circuits = 1Tab Fit = 6.35 mmPolyamide 6.6 MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING

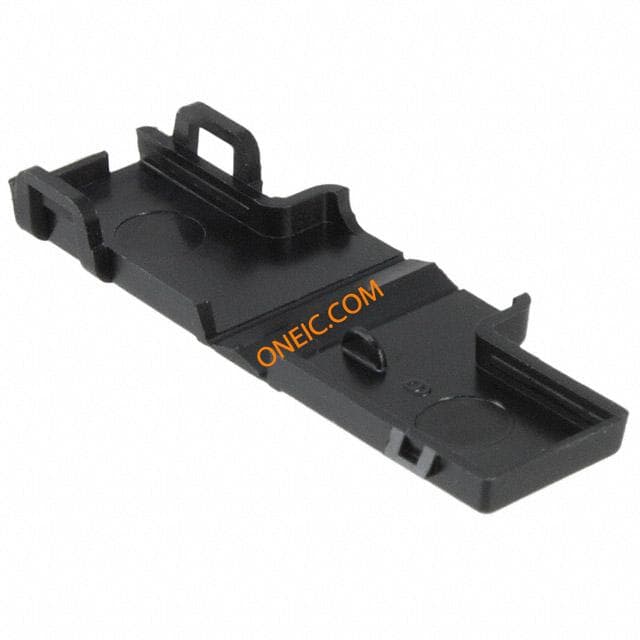

180984-5
