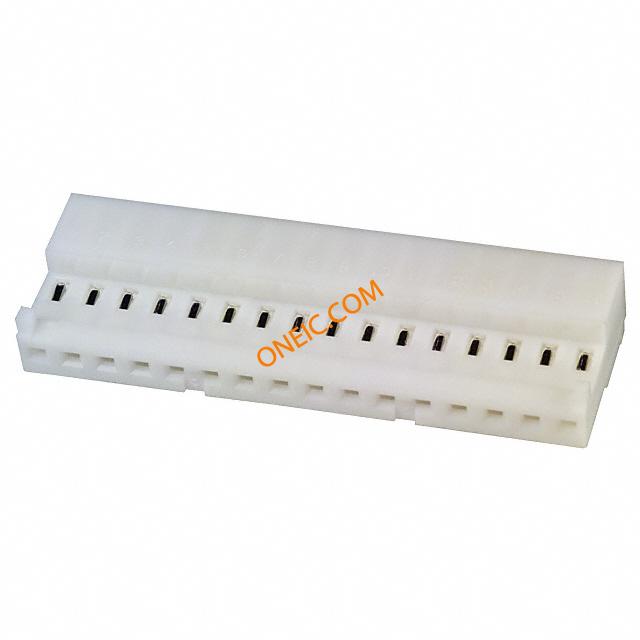

4-643814-6

点击放大查看

4-643814-6

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 16POS 24AWG MTA100 Headers & Wire Housings 16 POS RECEPT 24 AWG Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM TE Connectivity MTA-100 系列 16路 2.54mm节距 母 IDC 连接器 , 电缆安装 16P MTA100 CONN ASSY POL RIB
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
接触电阻6 mohm额定交流电压250
最大额定电流5 A最小供电电压250VAC

机械参数

颜色White深度6.99 mm
间距2.54 mm高度13.21 mm
重量0.000001包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规24 AWG
端接方式IDT触头类型Female Socket
极化Polarizing Tab第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin Over Nickel
紧固类型Locking Ramp安装样式Wire
排数1连接器用途Receptacle
触头材料Copper Alloy壳体材料Nylon
总长度40.64 mm安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向With
触点数16接触件端接:IDC / IDT
位数16典型触点布局2.54 [0.100]
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.2² [24]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55C to 105C
