4-641199-0

点击放大查看

4-641199-0

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers 10P MTA100 CONN ASSY WHT LF Headers & Wire Housings 10P MTA100 CONN ASSY WHT LF 10P MTA100 CONN ASSY WHT LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格500产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量500

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色White间距2.54 mm
高度7.75 mm [ .305 in ]长度25.4 mm [ 1 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规24 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色White安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Gold Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数10端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数10
衬套/护套类型不带兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器
安装孔直径不带接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度15µin (0.38µm)
恢复后小径No线规或范围 - mm²0.2² [24]
静电放电屏蔽带有护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Feed Through
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
4-641199-0?RQPN=4-641199-0

相关型号

1-640456-0

1-640456-0

te connectivity / amp

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 10POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 10P Straight Post tin Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,FrictionLock;MTA-100;10;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 10P, 1-640456-0, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 10P MTA100 HDR ASSY F/L SQ STR

¥0.9459
详情
1-640455-0

1-640455-0

te connectivity / amp

Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 10POS .100 TIN Headers & Wire Housings POLARIZED HEADER 10P Right Angle Post tin Conn Wire to Board HDR 10 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY SQ R/A POL

¥0.8758
详情
1-641215-0

1-641215-0

te connectivity / amp

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 10POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 10P Straight Post gold Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY FL/ST 30AU

¥6.4600
详情
643879-8

643879-8

te connectivity / amp

Conn Wire to Board HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 10POS STR .100 TIN Headers & Wire Housings 10P MTA100 HDR ASSY F/L OMIT#2 MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Header10 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 HDR ASSY F/L OMIT#2

¥2.4432
详情

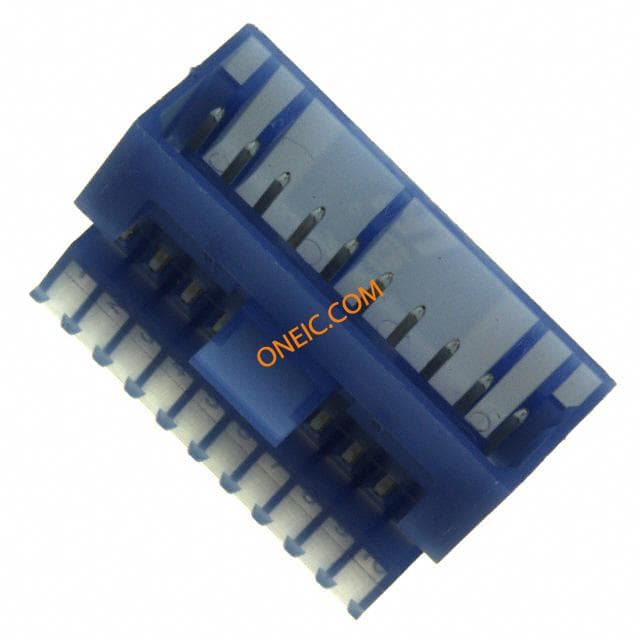

4-647002-0
