3-644861-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 10POS .100 TIN Headers & Wire Housings HDR 10P VRT SHROUD Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 SHRD HDR,W/O PEG SN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Wave solder capable to 240°C | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250 V | 开关功能 | Friction Lock |
| 供电电压 | 250 | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 连接器阻抗 | 焊接 |
| 最大额定电流 | 5 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 7.95 mm |
| 间距 | 2.54 mm | 高度 | 10.42 mm |
| 长度 | 27.53 mm [ 1.084 in ] | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 第二连接器 | Without | 触点形状 | Square |
| 外壳颜色 | White | 安装类型 | Vertical |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 触点时序 | Without | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 壳体镀层 | Tin | 外壳材料（壳体） | 摩擦锁 |
| 连接器用途 | Header | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 27.53 mm | 安装特性 | Without |
| 包装数量 | 500 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 配接方向 | Without |
| 触点数 | 10 | 端接表面处理 | 不带 |
| 位数 | 10 | 后壳中断功能 | Without |
| 兼容外壳尺寸（如TM-700等） | MTA .100 连接器组件 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触长度 - 配合 | 0.200" (5.08mm) |
| 触点材料 - 柱 | Copper Alloy | 端子柱长度 | 3.56 [0.140] |
| 接触镀层厚度 | 3.81 – 6.35 µm [ 150 – 350 µin ] | 恢复后小径 | No |
| 静电放电屏蔽 | 不带 | 护套（绝缘）厚度 | 1.27 µm, 50 µin |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | MTA-100 | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Printed Circuit Board | 应用细节 | Wire-to-Board |
| 加载位置数 | All | 跳过的位置数 | None |
环境参数
| 工作温度 | -55C to 105C | 封装热阻 | 1.6 mm [ .063 in ] |
文档与媒体
相关型号
1-640620-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings FEED THRU WO TAB 10P red tin 22 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 22AWG MTA100 Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA100 CONN ASSY F/T RED
1-640440-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 22AWG MTA100 Headers & Wire Housings CLOSED W/O TABS 10P red tin 22 AWG Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP SEE374-32454-640440-0
1-644312-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 10POS .100 POLAR TIN
1-641238-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 10POS 24AWG MTA-100 Headers & Wire Housings 10P MTA100 CONN ASSY 500 Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-641191-0
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10 POS 24AWG MTA 100 Headers & Wire Housings 10P ASSY WHT 24AWG 10P MTA100 CONN ASSY WHT 24AWG 10P MTA100 CONN ASSY WHT 24AWG Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

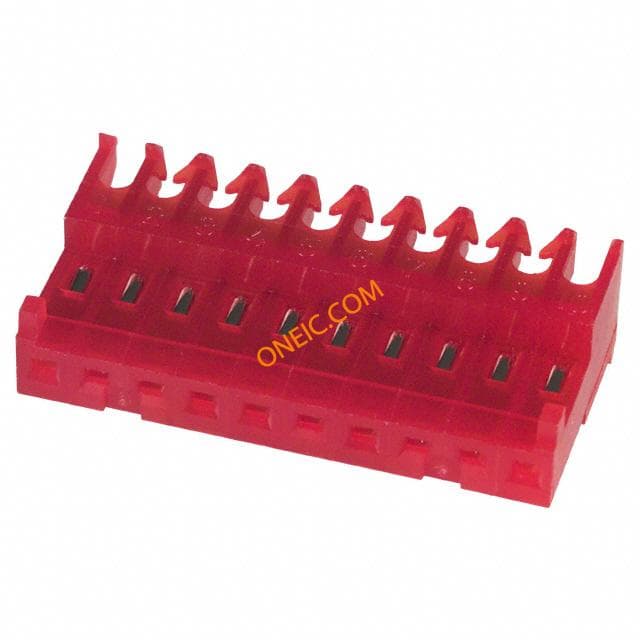

1-644540-0
