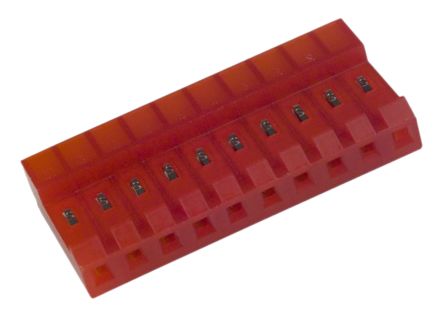

4-640428-0
| 制造商 | |
| 描述 | Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 22AWG MTA156 Headers & Wire Housings CLOSED W/O TABS 10P L.R. red 22 AWG Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 22AWG, 10WAY MTA-156CONNECTORTIN,10PMTA156CONNASSY22AWGRED TE Connectivity MTA-156 系列 10路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 10P MTA156 CONN ASSY 22AWG RED |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - MTA-156 Series | 额定电压 | 600 VAC |
| 开关功能 | Locking Ramp | 接触电阻 | 3 mohm |
| 最大额定电流 | 7 A | 最小供电电压 | 600VAC |
| 触点额定电流 | :5A | ||
机械参数
| 颜色 | Red | 深度 | 9.02 mm |
| 间距 | 3.96 mm | 高度 | 18.42 mm |
| 重量 | 0.0469 | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 导线线规 | 22 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :0.156" | 外壳颜色 | Red |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 39.62 mm | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Red |
| 触点数 | 10 | 接触件端接 | :IDC / IDT |
| 位数 | 10 | 接触镀层厚度 | 80µin (2.03µm) |
| 第一连接器安装类型 | :PC Board | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-156 | 产品特性 | Closed End |
| 制造商全称 | MTA-156 | 产品子类型 | Connector Assemblies |
环境参数
| 工作温度 | -55C to 105C | ||
