4-641208-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 10 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 10POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 10P Square post gold Conn Wire to Board HDR 10 POS 3.96mm Solder ST Thru-Hole Product Highlights:Header10 PositionsConnector Style = PlugContact Type = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA156 HDR ASSY FL ST LF |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 V | 开关功能 | Friction Lock |
| 供电电压 | 600 | 接触电阻 | 3 mohm |
| 最大额定电流 | 7 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 3.96 mm | 高度 | 13.34 mm |
| 长度 | 39.62 mm [ 1.56 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 紧固类型 | Friction Lock | 安装样式 | Through Hole |
| 引脚数 | 10 | 排数 | 1 |
| 壳体镀层 | Nickel | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 39.62 mm | 包装数量 | 1500 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 10 |
| 位数 | 10 | 外壳尺寸-插件 | 插头 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 连接器组件或 SL .156 连接器组件 | 安装孔直径 | 不带 |
| 接触件表面处理 - 配合 | 哑光 | 典型触点布局 | 直插式 |
| 接触长度 - 配合 | 0.400" (10.16mm) | 端子柱长度 | 3.18 mm |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | MTA-156 | 产品子类型 | Headers |
| 应用细节 | Wire-to-Board | 加载位置数 | All |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55C to 105C |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
相关型号
1-640600-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 20AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 10P L.R. yellow 20 AWG Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA156 CONN ASSY 20AWG YEL
1-644461-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings CLOSED WITH TABS 10P Orange 18 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS MTA-156 18AWG 10P MTA156 CONN ASSY 18AWG ORA
1-643821-0
te connectivity / amp

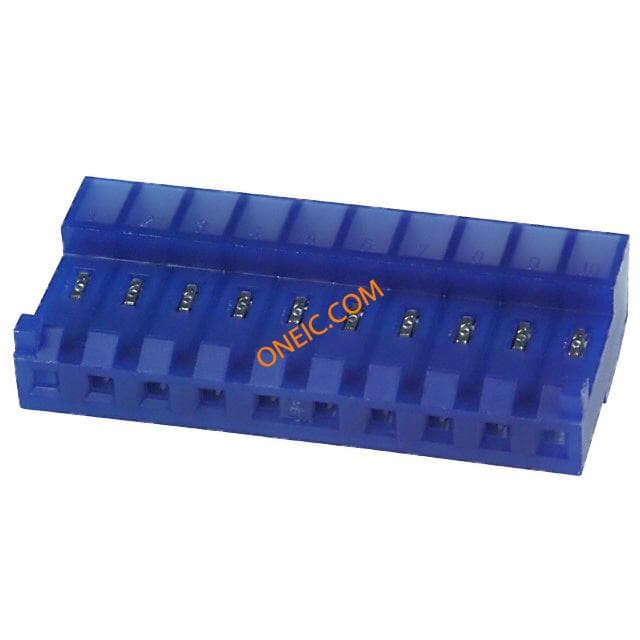

Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount CONN RECEPT 10POS MTA-156 26AWG
4-640600-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 20AWG MTA156 Headers & Wire Housings 10P ASSY 20AWG Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 10Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA156 CONN ASSY 20AWG LF
4-640604-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 18AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 10P Orange 18 AWG 10P MTA156 CONN ASSY 18AWG LF 10P MTA156 CONN ASSY 18AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
1-640604-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS MTA-156 18AWG
1-641168-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount CONN RCPT 10POS .156 GOLD
1-644463-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS MTA-156 22AWG Headers & Wire Housings CLOSED WITH TABS 10P Red 22 AWG 10P MTA156 CONN ASSY 22AWG RED 10P MTA156 CONN ASSY 22AWG RED Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-640433-0
te connectivity / amp
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 22AWG MTA156 Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Product Highlights:10 PositionsPreloadedHousing Gender = PlugContact Gender = ReceptacleConnector Style = Closed EndSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 10P MTA156 CONN ASSY 22AWG RED
4-644467-0
te connectivity / amp
Conn IDC Connector RCP 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 22AWG MTA156 Headers & Wire Housings 10P MTA156 CONN ASSY 22AWG LF 10P MTA156 CONN ASSY 22AWG LF 10P MTA156 CONN ASSY 22AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
4-644462-0
te connectivity / amp

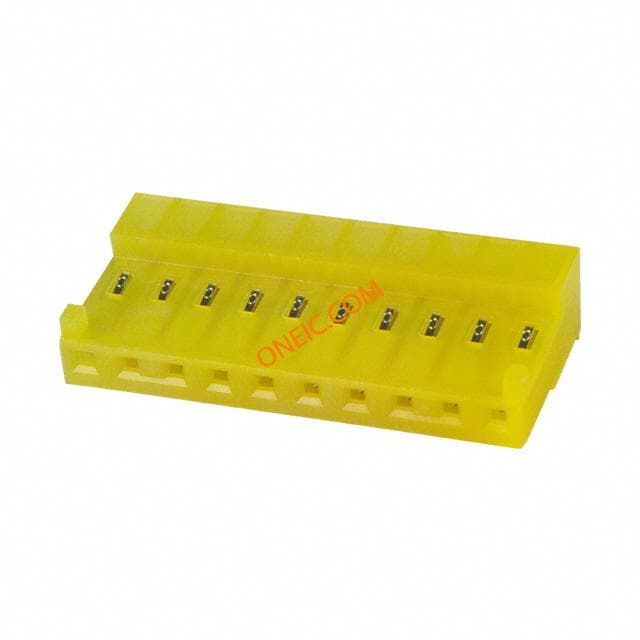

Conn IDC Connector RCP 10 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10POS 20AWG MTA156 Headers & Wire Housings 10P MTA156 CONN ASSY 20AWG LF 10P MTA156 CONN ASSY 20AWG LF 10P MTA156 CONN ASSY 20AWG LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
