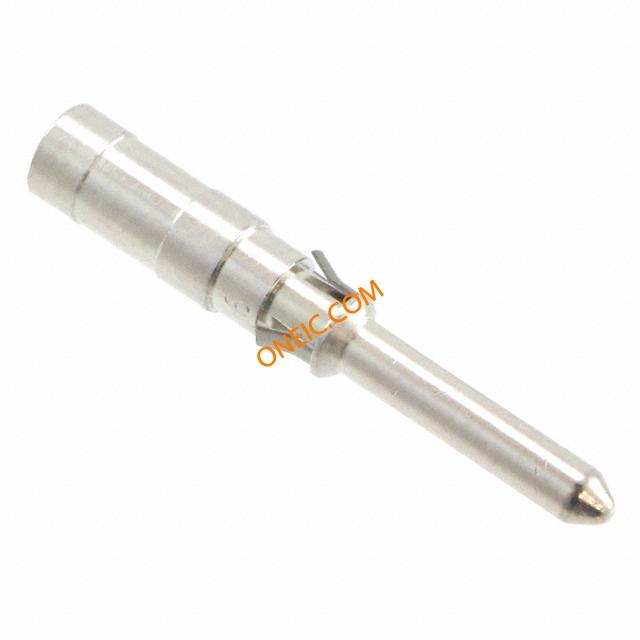

4-1105300-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Heavy Duty Power Connectors HVT-C-Sti.Ag.2 5 qmm HTS Connectors and Accessories HVT-C-STI.AG.2,5 QMM 4-1105300-1 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接触电阻 | 3 | ||
机械参数
| 包装方式 | Bulk | 导线线规 | 13.5 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Pin | 连接器类型 | Connector Rectangular |
| 接触镀层 | Silver | 触头材料 | Copper Alloy |
| 包装数量 | Loose Piece | 端接样式 | Crimp |
| 导线剥线长度 | 8.00 [0.315] | 接触件端接 | Crimp |
| 线规或范围 - mm² | 2.50² [13.5] | ||
产品信息
| 备注 | Use with HTS Series HVT inserts | 类型 | Machined |
| 连接器性别 | SKT | 系列 | HVT |
| 产品子类型 | Contact | ||
