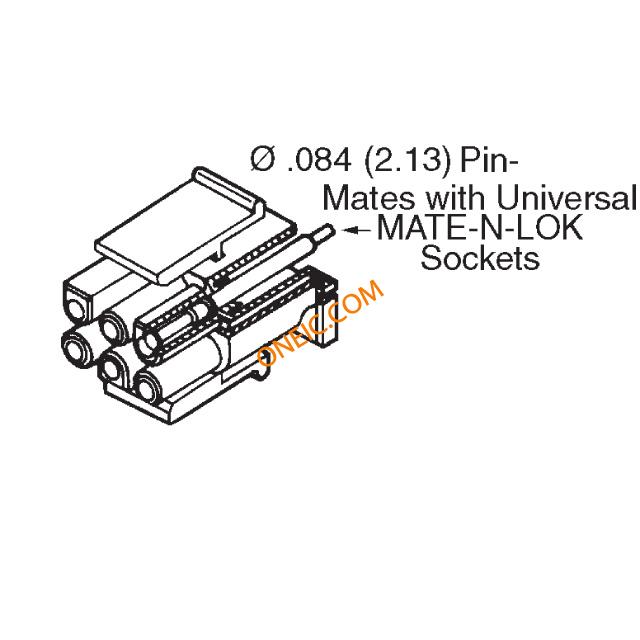

350848-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount One Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS UNIV-MATE-N-LOK Pin & Socket Connectors 06P PLUG TEST 94V0 Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount One Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PLUG TEST ASSY 94V0 |
| 分类 |
商业参数
| 其他名称 | A25735 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 间距 | 6.35 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 导线类型 | Discrete | 导线线规 | 30 – 10 |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 接触镀层 | Tin |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 引脚数 | 6 | 排数 | 3 |
| 封装形式 | Plug | 壳体材料 | Nylon |
| 包装数量 | 1 | 电缆端接方式 | Crimp |
| 端接样式 | Socket | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | 通用 MATE-N-LOK 插座 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 预镀锡 | 典型触点布局 | 矩阵 |
| 静电放电屏蔽 | 带有 | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Test Assembly | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | 装配配置 | Without |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
相关型号
1-350781-9
TE Connectivity / AMP
Power to the Board CAP HOUSE 6 POS BLACK UL94V-0 .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 6POS 94V-0 BLK
350834-4
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 06P UMNL HDR ASSY PC 94VO LF .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL HDR ASSY PC 94VO LF
350989-3
TE Connectivity / AMP
Pin & Socket Connectors 06P UMNL HDR ASSY LNG/TL .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT UMNL GOLD
643424-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 6 Way 3 Row Straight PCB Socket Through Hole Power Power to the Board 06P UMNL HDR ASSY PO Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 6WAY HEADERVERTPCB6WAYPIN TE Connectivity Universal MATE-N-LOK 系列 3行 6路 直 6.35mm节距 通孔 印刷电路板插座, 功率 06P UMNL HDR ASSY POL 94VO
350827-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN MATE-N-LOK 6 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 6 POS STD TAIL SOCKT Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 6WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;6;Nylon Socket; wire-board; female; 6.35mm; PIN:6; tinned; Pin layout:2x3 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直 印刷电路板插座, 焊接端接, 19A , 通孔 06P UMNL HDR ASSY PC 94VO
350827-2
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 AU Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

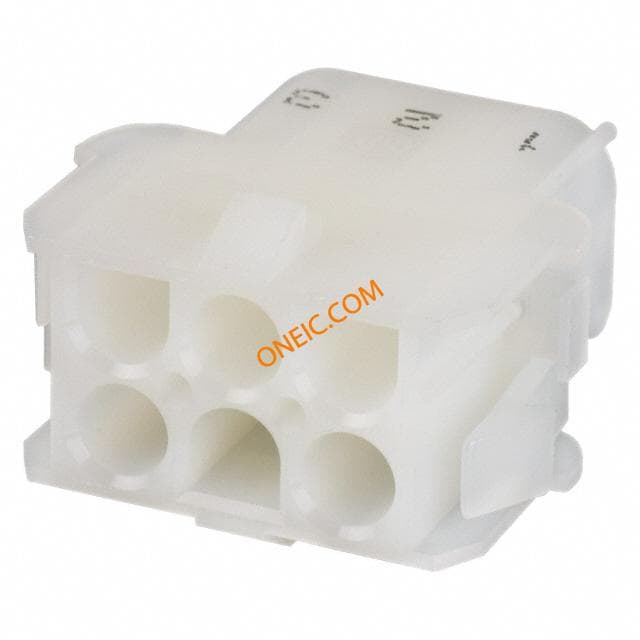

2-480705-0
