点击放大查看

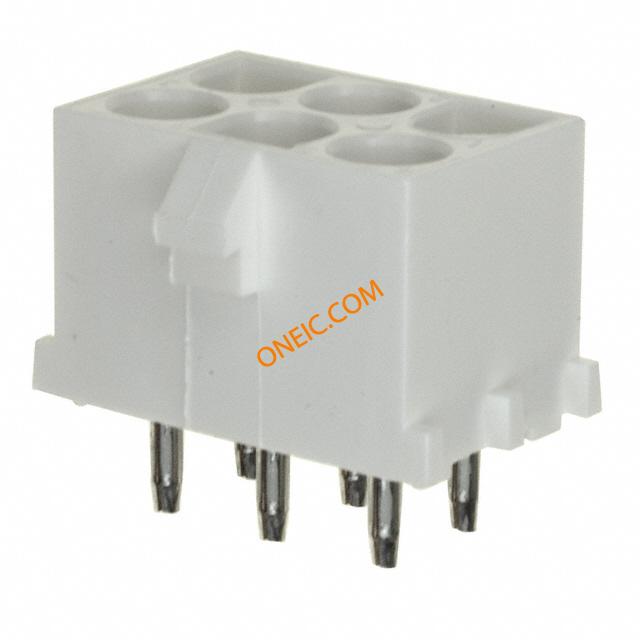

350834-4

制造商	TE Connectivity Ltd.
描述	Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 06P UMNL HDR ASSY PC 94VO LF .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL HDR ASSY PC 94VO LF
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装规格	100	产品类别	Pin & Socket Connectors
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
零件状态	E28476	CSA档案号	LR7189
标准编号	CSA, UL	CSA分类	已认证
UL阻燃等级	UL 94V-0	认证机构标志	是

电气参数

供电电压

600

最大额定电流

机械参数

颜色	Natural	间距	6.35 mm
宽度	13.97	高度	13.97 mm [ .55 in ]
长度	20.32 mm [ .8 in ]	密封型	Not Sealed
包装方式	Bulk	排间距	0.250" (6.35mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole	连接器类型	Header
接触镀层	Gold	紧固类型	Locking Ramp
安装样式	不带	引脚数	6
排数	3	壳体材料	尼龙
包装数量	100	面板安装类型	通孔 - 焊接
端接样式	插针	触点数	6
位数	6	外壳尺寸-插件	插头
兼容外壳尺寸（如TM-700等）	与插头护套插接（使用插针端子）	接触件表面处理 - 配合	锡
典型触点布局	矩阵	端子柱长度	5.08 mm [ .199 in ]
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Power	连接器性别	SKT
产品子类型	Receptacle Housings	应用细节	Power
装配配置	Without	加载位置数	All

环境参数

测试温度	标准件 - 非灼热丝	工作温度	-40 – 105 °C [ -40 – 221 °F ]
封装热阻	.125 mm [ 3.18 in ]
