点击放大查看

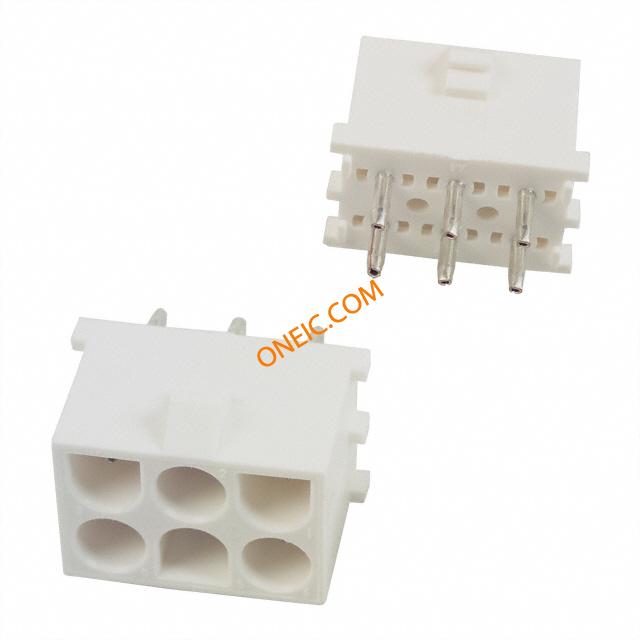

350711-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Power to the Board HDR PIN 2X03C VRT V0 Conn Power HDR 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, MALE, 6WAY 06P UMNL PIN HDR ASSY 94VO LF |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V |
| 最大额定电流 | 19 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 高度 | 14.73 mm | 重量 | 0.002 |
| 包装方式 | Bulk | 排间距 | 0.250" (6.35mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 3 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | :Solder |
| 位数 | 6 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
