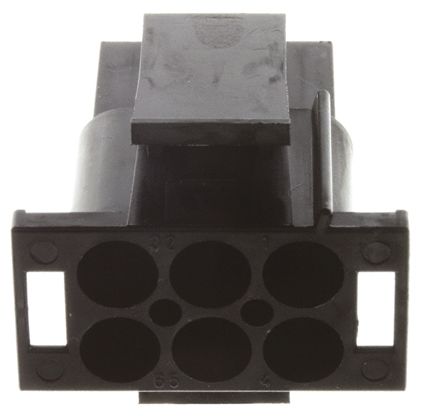

点击放大查看
1-480704-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 6POS 94V-2 BLK Power to the Board 6P PLUG HOUSING Conn Housing PL 6 POS 6.35mm Crimp ST Cable Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON Conn;PlugHsg;6Pos;UnivMATE-N-LOK;Black TE Connectivity Universal MATE-N-LOK 系列 2 行 6.35mm 节距 6 路 直 公 电缆安装 压接连接器外壳 06P UMNL PLUG HSG BLK |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 19 A |
机械参数
| 颜色 | Black | 间距 | 6.35 mm |
| 重量 | 0.000001 | 包装方式 | Bulk |
| 排间距 | 0.250" (6.35mm) | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Polyamide (PA) |
| 端接样式 | Wire | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Universal MATE-N-LOK |
| 产品子类型 | Housings | 适用产品/相关产品 | :Universal MATE-N-LOK Connectors |
