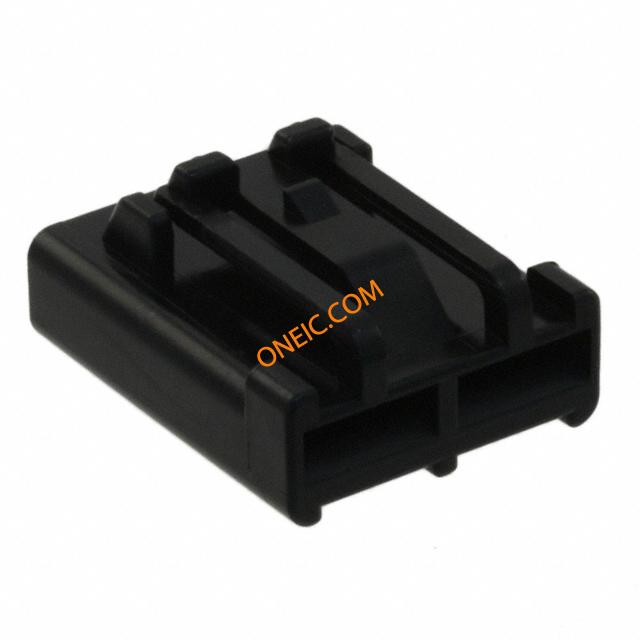

346027-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 9mm Crimp ST Loose Piece Automotive Connectors 2 WAY RECEPTACLE HSG Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN PLUG 2WAY RCPT 2CIRCUIT BLK Conn Housing RCP 2 POS 9mm Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmLoose PieceColor = BlackSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FASTIN FASTON HOUSING RECEPTACLE |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 3460271 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Black | 间距 | 9 mm |
| 长度 | 23 mm | 材料（通用） | Acetal |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Yes |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Receptacle Housing | 壳体材料 | Acetal |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 产品子类型 | Receptacle Housing | 电路数 | 2 |
| 适用产品/相关产品 | 0.250" (6.35mm) x 0.032" (0.81mm) Quick Connects | ||
