点击放大查看

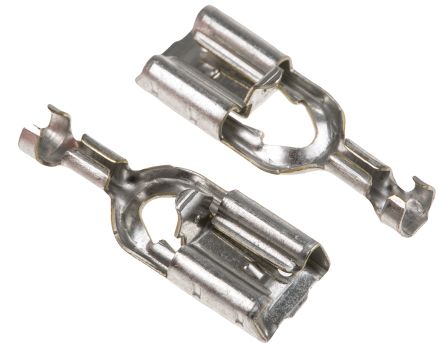

341412-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal RCP 22.05mm Pre-Tin Loose Piece Headers & Wire Housings POSI.LK REC.MK II L/P (PR PT brass positive lock receptacle1.5sqmm CRIMP TERMINAL, FEMALE, 0.5-1.5MM PTbrasspositivelockreceptacle1.5sqmm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 镀锡触芯 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
机械参数
| 重量 | 0.069 | 材料（通用） | :Polyamide 6.6 |
| 插片宽度 | :6.35mm | 导线线规 | :16AWG |
| 端接方式 | :Crimp | 螺柱/焊片尺寸 | :6.3mm x 0.8mm |
| 连接器类型 | :Disconnect | 接触镀层 | Tin |
| 材料表面处理 | :- | 触头材料 | Brass |
| 绝缘颜色 | :- | 连接器颜色 | :Tin |
| 绝缘材料 - 材质 | :- | 线规或范围 - AWG | :20AWG |
| 线规或范围 - mm² | :1.5m² | 外径-未扩张 | :2.9mm |
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | RCP |
| 系列 | :250 | 制造商全称 | MKII250Series |
环境参数
| 工作温度 | :140°C | ||
