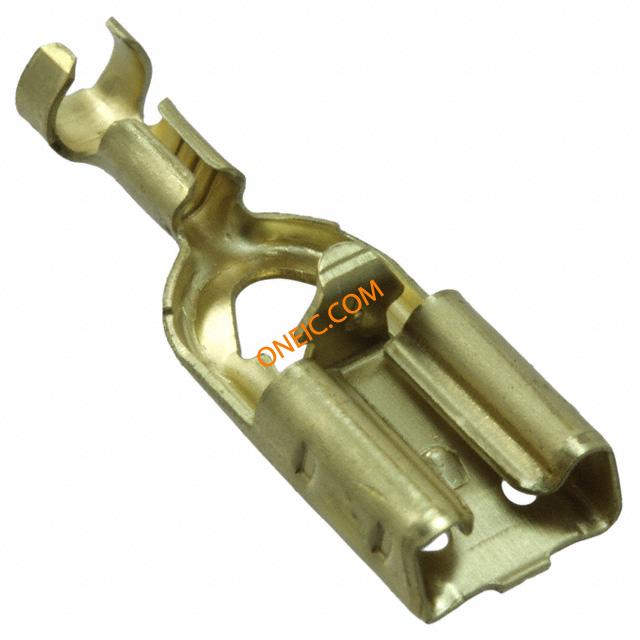

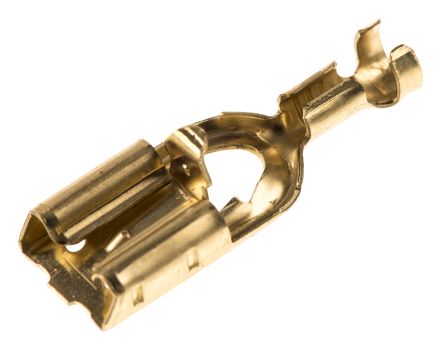

341412-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal RCP 22.05mm Loose Piece Headers & Wire Housings POSI LK REC.MK II (L.P.) CONN RECPT MARKII .250 Brass positive lock receptacle,1.5sq.mm CRIMP TERMINAL, FEMALE, 0.5-1.5MM Brasspositivelockreceptacle,1.5sq.mm TE Connectivity Positive Lock .250 Mk II 系列 压接插座 , 6.35 x 0.81mm PL 250 REC TERMINAL BR LP |
| 分类 |
商业参数
| 标准包装规格 | 5,000 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 重量 | 0.068 | 材料（通用） | :Polyamide 6.6 |
| 包装方式 | Bulk | 插片宽度 | 0.250" (6.35mm) |
| 绝缘类型 | Non-Insulated | 导线线规 | 15.5-20 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | :6.3mm x 0.8mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Disconnect |
| 接触镀层 | :- | 材料表面处理 | :- |
| 触头材料 | Brass | 绝缘颜色 | :- |
| 总长度 | 0.853" (21.67mm) | 连接器颜色 | :Brass |
| 绝缘直径 | 0.082" ~ 0.114" (2.08mm ~ 2.90mm) | 绝缘材料 - 材质 | :- |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | :1.5mm² |
| 外径-未扩张 | :2.9mm | ||
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | RCP |
| 系列 | :250 | 制造商全称 | MKII250Series |
环境参数
| 工作温度 | :140°C | ||
