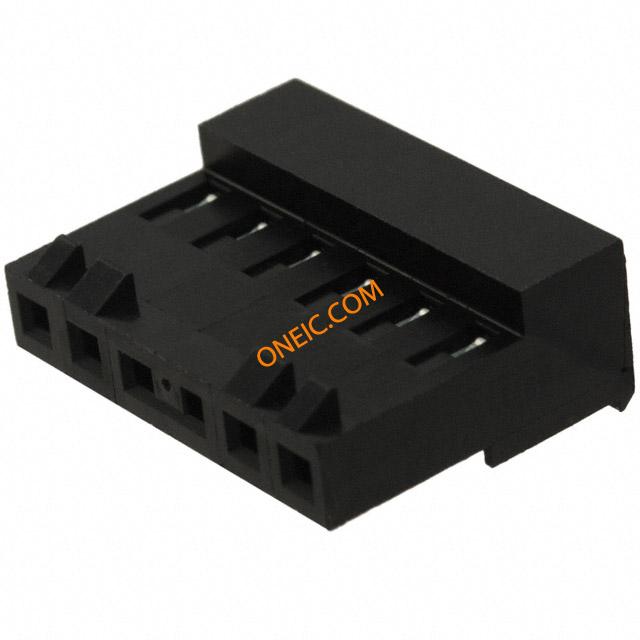

3-644329-6

点击放大查看

3-644329-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 6POS 18AWG MTA-156 Headers & Wire Housings REC 06P C/E 18AWG RAMP QUAD Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, RECEPTACLE, IDC, 18AWG, 6WAY
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称36443296产品类别Headers & Wire Housings
标准包装数量Tape & Reel工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - MTA-156 Series额定电压250 V
开关功能Locking Ramp接触电阻3 mohm
最大额定电流5 A最小供电电压600VAC

机械参数

颜色Black深度9.02 mm
间距3.96 mm高度18.54 mm
重量0.02包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
出线方向90°导线线规18 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Black
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Bright Tin紧固类型Locking Ramp
安装样式Wire排数1
连接器用途Receptacle锁定特性Locking Ramp
触头材料Copper Alloy壳体材料Nylon
总长度23.77 mm安装特性Without
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数6
接触件端接:IDC位数6
典型触点布局3.96 [0.156]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.8-0.9² [18]

产品信息

备注Mates with tin-plated square posts only类型IDC Connector
连接器性别F系列MTA-156
产品特性Closed End制造商全称AMP
产品子类型MTA-156 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55C to 105C
