点击放大查看

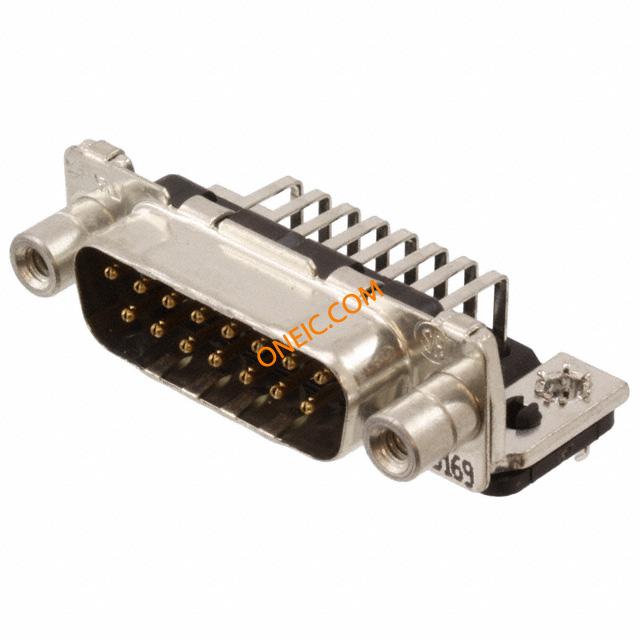

3-338169-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 PLUG ASSY Standard Board Mount Connectors CONN PLUG 15POS R/A 30GOLD T/H Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub PLUG, D, 4-40UNC, 15WAY 15P HDP20 PLUG ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 45 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认可国家 | DIN 41652 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 接地方式 | Without | 量程（°/s） | :TE CONNECTIVITY - Amplimite HDP-20 Series |
| 额定电压 | 125V | 工作电压 | :250VAC |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 重量 | 0.01 |
| 镀层 | Tin | 材料（通用） | Phosphor Bronze |
| 占位面积 | 10.31 [.406] | 包装方式 | Tray |
| 外壳尺寸 | 2 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Bright Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Mating Side; Female Screwlock (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.062 [1.57] |
| 连接器样式 | D-Sub | 锁定特性 | Female Screwlocks, 4-40 UNC |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 面板安装类型 | Without |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 15 |
| 接触件端接 | :Solder | 位数 | 15 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | 30µin (0.76µm) |
| 螺钉材料 - 镀层 | Steel | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | HDP-20 | 产品特性 | Board Lock, Grounding Indents |
| 制造商全称 | AMP | ||
环境参数
| 工作范围 | Level 2 | 工作温度 | -55°C ~ 105°C |
