点击放大查看

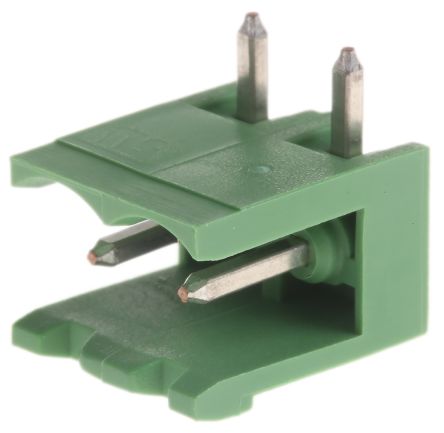

282815-2
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Terminal Block Connectors TERM BLOCK HDR 2POS R/A 5.08MM TE Connectivity 282815 Series 5.08mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Pluggable Terminal Blocks TERMI-BLOK HEADER ASSY90 2P Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenSide StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 2WHORIZONTALHEADER TE Connectivity Buchanan 系列 5.08mm节距 2路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 TERMI-BLOK HEADER,ASSY90 2P.5 |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 300 |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V ac | 额定交流电压 | 300 |
| 跳闸电流 | 15 | 最大额定电流 | 15A |
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 端部样式 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 方向 | 直角 |
| 端接方式 | Solder | 引脚长度（针脚） | 3.5 mm [ .138 in ] |
| 第二连接器 | 否 | 安装类型 | Through Hole |
| 连接器类型 | 头 | 接触镀层 | Tin |
| 法兰特征 | 是 | 排数 | 1 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 包装数量 | 300 |
| 端接排数 | 焊接 | 排针方向 | 90°, Right Angle |
| 触点数 | 2 | 位数 | 2 |
| 接线端子类型 | Header, Male Pins, Shrouded (2 Side) | 螺纹/螺钉/孔尺寸 | 不带 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 282815 | 产品特性 | Side Stacking |
| 层数 | 1 | 互连系统 | 不带 |
| 每层位数 | 2 | 并排堆叠 | 是 |
