280384-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 8POS DUAL STR TIN TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings 2X04P HDR SHROUDED TIN Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 8Mating Post Length = 6.60 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, SHROUDED, 180DEG, 4X2WAY 8waydoublerowtin Socket; wire-board; male; PIN:8; 2.54mm; THT; AMPMODU MOD II TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (2排) 直 PCB 针座, 焊接端接 , 通孔 2X4P AMPMODU II SHRD HDR, ST, TIN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU Mod II Series | 开关功能 | Detent Windows |
| 接触电阻 | :15mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 7 mm |
| 间距 | 2.54 mm | 高度 | 12.6 mm |
| 重量 | 0.001001 | 材料（通用） | :Thermoplastic, Glass Filled |
| 包装方式 | Bulk | 方向 | straight |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 柱间距 | 2.54 [.100] | 第一连接器 | No |
| 第二连接器 | With | 安装类型 | Vertical |
| 连接器类型 | Shrouded | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 2 |
| 封装形式 | 3-Sided | 锁定特性 | Detent Windows |
| 外形（宽 x 高） | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic Glass Reinforced | 总长度 | 12.7 mm |
| 安装特性 | Without | 包装数量 | 1,000 |
| 面板安装类型 | Without | 主要材料 | WiretoBoard |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Black |
| 触点数 | 8 | 接触件端接 | :Through Hole Vertical |
| 位数 | 8 | 柱体长度（配合） | 6.6 mm |
| 接触长度 - 配合 | 6.60 [0.260] | 表面贴装焊盘尺寸 | No |
| 端子柱长度 | 3.50 [0.138] | 接触镀层厚度 | 137.8µin (3.50µm) |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 2x4 |
产品信息
| SPG | 10 | 类型 | Wire to Board |
| 连接器性别 | HDR | 系列 | AMPMODU |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Header | 适配器系列 | AMPMODU MOD II |
| 单元数量 | 1 | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | No | 插拔次数 | :25 |
| 工作温度 | -55 â +105 | ||
文档与媒体
相关型号
280365
TE Connectivity AMP Connectors
Conn Housing RCP 8 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS DUAL ROW W/POLAR 8 way (2x4) MODU crimp socket shell Headers & Wire Housings 2X04 POS RECPT Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE HOUSING, 4X2WAY 8WSOCKETSHELL(2X4) Plug; wire-board; female; PIN:8; w/o terminals; 2.54mm; for cable Crimp housing 2 x 4P, 280365, TE Connectivity TE Connectivity AMPMODU Mod II 系列 2 行 2.54mm 节距 8 路 直 母 PCB 壳体 AMPMODU, DBL ROW, CONTACT REC
215307-4
te connectivity / amp

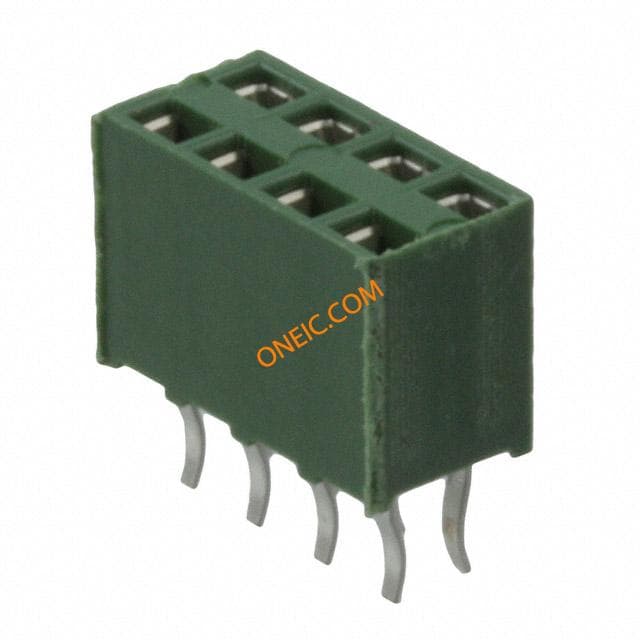

Conn Socket Strip RCP 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT VERT HV-100 8POS TE Connectivity 2.54mm 4 Way 2 Row Straight PCB Socket Through Hole Socket Strip Headers & Wire Housings REC ASSY 2X4P VERT HV-100 Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip RCP 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleHV-100Number of Positions = 4Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, SOCKET, VERTICAL, 2ROW, 8WAY 4WD/ROWVERTSKT Socket; pin strips; HV-100; female; PIN:8; straight; 2.54mm; THT Female header 2 x 4P, 215307-4, TE Connectivity 2X4P HV100 REC CON. TE, 7.0MM
