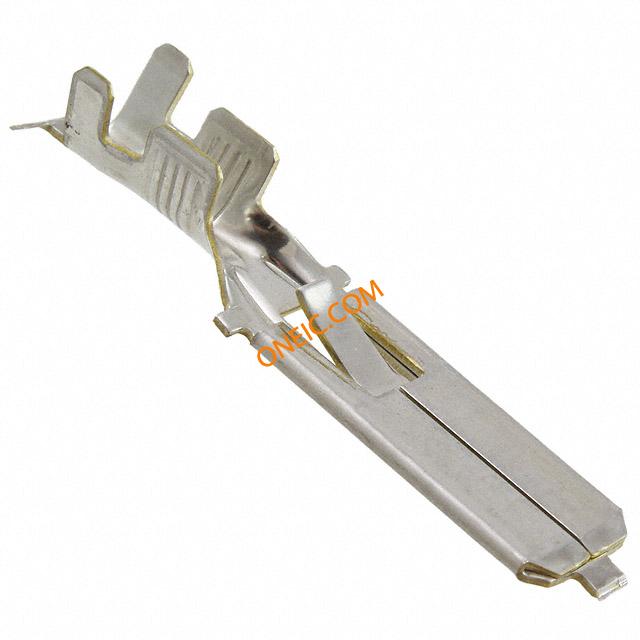

280075-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Tab Terminal 10-12AWG M 37.4mm 10.7mm Pre-Tin Strip Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN UNINS TAB 10-12AWG 0.375 Crimp,Faston,rcp,strt,M,10-12awg,strip Tab contact, FASTIN-FASTON (REEL) Automotive Connectors .375 F-F Tab Terminal 10-12AWG M 37.4mm 10.7mm Pre-Tin Strip Product Highlights:TabTab Fit = 9.53 x 1.22 mmWire Range = 3.00-6.00² [12-10] mm [AWG]Insulation Diameter = 3.00-5.08 [.118-.200] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on TE Connectivity FASTIN-FASTON .375 系列 压接接线端子, 9.52 x 1.25mm, 镀锡触芯 FF 375 TAB 3-6MM2 PTBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 其他名称 | A107118CT |
| 标准包装数量 | 1,500 | 工厂包装数量 | 4500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 最大电压 | 250 | 最大频率 | Single |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Pre-Tin | 材料（通用） | Brass |
| 包装方式 | Tape & Reel (TR) | 遮蔽类型 | Unshrouded |
| 插片宽度 | 9.53 x 1.22 [.375 x .048] | 厚度 | 0.56 [0.022] |
| 电缆类型 | Regular Wire | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.843" (21.40mm) | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.048" (1.22mm) | 端子类型 | Standard |
| 电缆直径 | 6mm² | 电缆材料 | Yes |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 封装形式 | Multiple | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | FASTIN-FASTON .375 | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | With |
| 端接样式 | 公端 | 适用端子尺寸 | 3.4 – 5.1 mm [ .134 – .2 in ] |
| 接触件尾部长度 | 1.25mm | 绝缘直径 | 3.00-5.08 [.118-.200] |
| 绝缘材料 - 类型 | No | 镀层厚度（通用） | .4 |
| 总厚度 | .56 mm [ .022 in ] | 焊盘布局尺寸 | 9.52 x 1.25mm |
| 法兰上方插针尺寸 | 9.53 mm [ .375 in ] | 法兰下方引脚尺寸 | 1.22 mm [ .048 in ] |
| 堆叠高度（配合） | 1.42 | 线规或范围 - AWG | 10AWG |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 触点镀层厚度 - 柱 | 9.52mm |
产品信息
| 备注 | According to DIN 46343, Part 4 | 连接器性别 | Male |
| 系列 | 375 | 覆盖范围 | 无覆盖 |
| 产品子类型 | Tab | ||
环境参数
| 工作温度 | -30 – 105 | ||
