171449-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing SKT 2 POS 9.53mm Crimp ST Loose Piece Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB HSG .375 2POS BROWN Headers & Wire Housings 2P.FF CAP HSG ASS Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:ConnectorWithout ContactsHousing Gender = ReceptacleAccepts Contact Gender = TabNumber of Circuits = 2Search Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on SOCKET, FASTON, 2WAY |
| 分类 |
商业参数
| 标准包装规格 | 200 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :TE - FASTIN-FASTON 375 Series | ||
机械参数
| 颜色 | Brown | 间距 | 9.53 mm |
| 重量 | 0.03 | 材料（通用） | Nylon |
| 插片宽度 | 9.53 [.375] | 安装类型 | Straight |
| 端子尺寸 | 0.375" (9.53mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | Yes | 接触镀层 | :- |
| 排数 | :1 | 触头材料 | :- |
| 壳体材料 | Nylon | 总长度 | FASTIN-FASTON .375 |
| 包装数量 | Loose Piece | 触点数 | 2 |
| 堆叠方向 | Top to Bottom | 接触件端接 | :- |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | SKT |
| 产品子类型 | Tab Housing | 电路数 | 2 |
| 适用产品/相关产品 | 0.375" (9.53mm) Quick Connects | ||
相关型号
280074-2
te connectivity / amp
Quick Disconnect Terminal 7-10AWG M 37.4mm 10.7mm Tin Strip Terminals TAB 10-7 AWG CRIMP Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN TAB 10-7 AWG CRIMP Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON Product Highlights:TabTab Fit = 9.53 x 1.22 mmWire Range = 5.00-10.00² [10-7] mm [AWG]Insulation Diameter = 5.10-7.00 [.201-.276] mm [in]Wire/Cable Type = Regular WireSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on FF 375 TAB 6-10MM2 PTBR

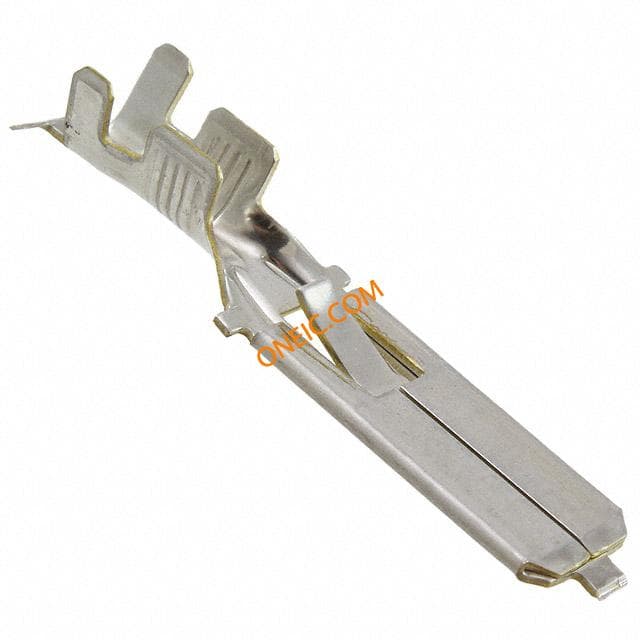

280075-2
