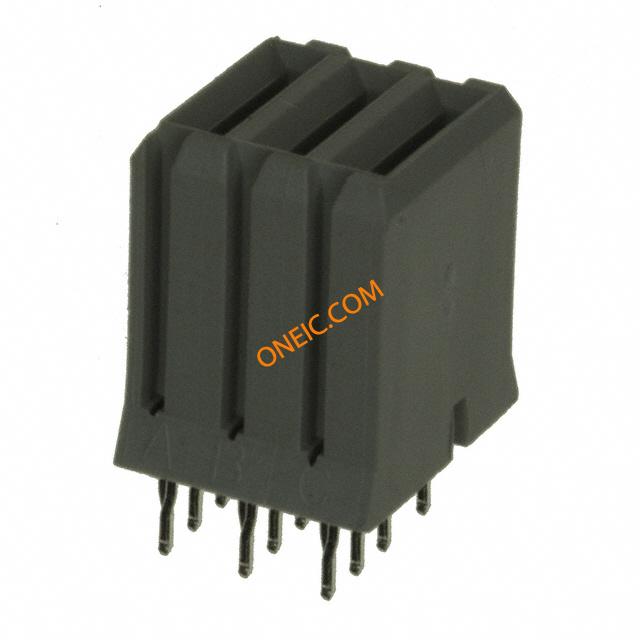

223955-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Universal Power Module RCP 3 POS 2mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RECEPT VERT 3 POS 2MM Z-PACK 3 Female Straight Heavy Duty Power Connector, Through Hole 10A Hard Metric Connectors UNV PWR ASSY RECP Conn Universal Power Module RCP 3 POS 2mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3Not KeyedSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL TE Connectivity Z-Pack 系列 3路 直 2mm节距 通孔 母 RJ45-Rangierfeld, 通用电源模块 UNV PWR MDL ASY RECEPT |
| 分类 |
商业参数
| 其他名称 | 2239552 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 60 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS/Not ELV Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 250V | 最大额定电流 | 10A |
机械参数
| 颜色 | Gray | 深度 | 9.5 mm |
| 间距 | 2 mm | 高度 | 12.15 mm |
| 重量 | 1 | 包装方式 | Tube |
| 端接方式 | Solder | 触头类型 | Compliant Post |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Blade Sockets | 接触镀层 | Tin-Lead |
| 安装样式 | Through Hole | 排数 | 1 |
| 连接器样式 | Blade Power | 连接器用途 | Backplane |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyester |
| 总长度 | 11.35 mm | 端接样式 | Press Fit |
| 触点数 | 3 | 接触件端接 | :Press Fit Vertical |
| 位数 | 3 | 典型触点布局 | 3 Power |
| 接触镀层厚度 | 3µin (0.08µm) | ||
产品信息
| 备注 | Contact area lubricated with Bellcore approved lubricant. | 类型 | Universal Power Module |
| 连接器性别 | RCP | 系列 | Z-PACK |
| 编码、键控 | No | 产品子类型 | Receptacle |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) UNV,PWR,MDL.HDR,R-PEGS Hard Metric Connectors UNV PWR MDL. R-PEGS Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, PLUG,UNIVERSALPOWERMODULE,3POSITION,RIGHTANGLE 3 Position 2 mm Plug Right Angle Through Hole Press Fit Universal Power Module TE Connectivity 3mm节距 3路 (1排) 直角 背板连接器, 按压安装端接 , 通孔
5223955-2
te connectivity / amp
Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RCPT 3POS STR UNIVER Z-PACK Female Compact Power Connector Socket Through Hole,Press-In Termination Hard Metric Connectors REC 1X003P VRT B-PLANE UPM high speed backplane connectors Conn Power RCP 3 POS 3mm Press Fit ST Thru-Hole 3 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL 3 Position Vertical Receptacle Through Hole Press Fit Universal Power Module TE Connectivity 背板连接器 插座 母, 通孔安装, 按式端接 UNV PWR MDL ASY RECEPT
5223963-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN HEADER 3POS RT ANG 2MM Header horiz 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A B-PLANE UPM Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:ConnectorHousing Gender = ReceptacleContact Gender = Blade3 PositionsPCB Mount Angle = Right AngleSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, UNV,PWR,MDL,HDR,SEQ 3 Position Plug Right Angle Through Hole Press Fit Universal Power Module

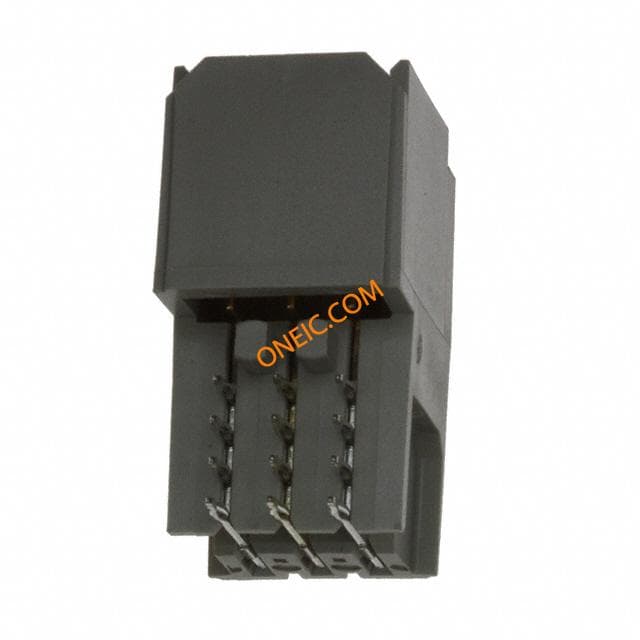

223963-1
