点击放大查看

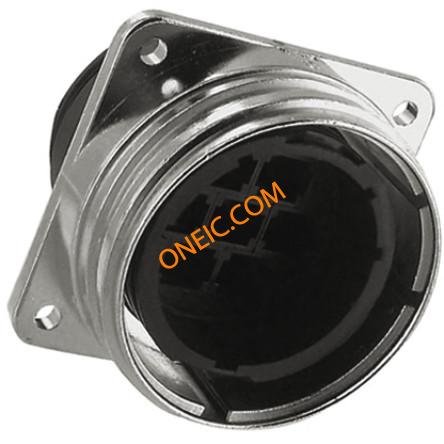

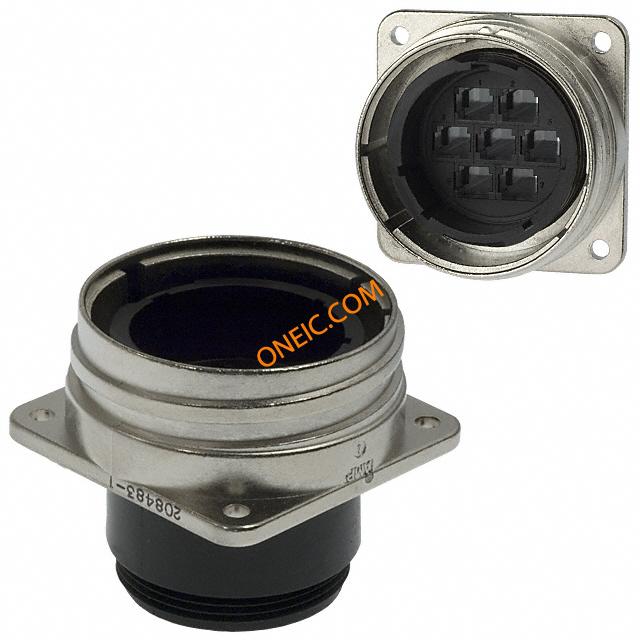

208483-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Metal Shell CPC PIN 7 POS ST Panel Mount 7 Terminal 1 Port CPC Connectors CONN RECEPT CPC 7POS STD SER 3 Connector,MetalShellCPC,Recept.Assy,7Pos Standard Circular Connector RECP SQUARE STD 28-7 Conn Metal Shell CPC PIN 7 POS ST Panel Mount 7 Terminal 1 Port Product Highlights:Connector7 PositionReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 28, 7POS, PANEL Connector;MetalShellCPC;Recept.Assy;7Pos.;Sz.28;Series3;PanelMount CMC RECEPTACLE ASSY,SIZE 28 |
| 分类 |
商业参数
| 商标名 | CPC Series 3 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 通道数量 | 0 | ||
机械参数
| 颜色 | Black | 深度 | 49.53 mm |
| 高度 | 49.53 mm | 密封型 | No |
| 重量 | 0.118 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 28 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 螺纹尺寸 | 1-3/8 - 18 UNEF-2A | 触点形式 | 7Signal |
| 触点尺寸 | 7 Power | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle for Male Contacts | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 安装样式 | Panel |
| 外壳材料（壳体） | Zinc alloy | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 46.36 mm |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Wire | 第一触头极性 | Male |
| 配接方向 | Keyed | 触点数 | 7 |
| 绝缘直径 | 5.59 [0.220] | 位数 | 7 |
| 外壳尺寸-插件 | Metal | 安装孔直径 | 0.145" |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 28-7 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Metal Shell CPC |
| 连接器性别 | RCP | 系列 | Series 3 |
| 预加载 | No | 排列方式 | 28-7 |
| 制造商全称 | Series3 | 产品子类型 | Connector |
| 射频系列/标准 | 208483 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
环境参数
| 工作温度 | -55C to 125C | ||
