点击放大查看

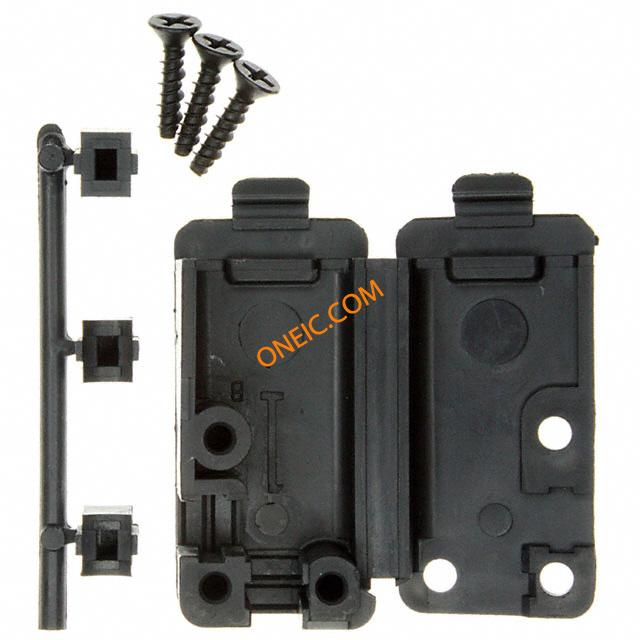

207467-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Clamp Thermoplastic Individual D-Sub Backshells 9 PIN CABLE CLAMP Cable Clamps CONN BACKSHELL DB9 PLASTIC AMPLIMITE backshell kit, size 1 Backshell/Cable Clamp 90�/180� 1 Shell Size Polypropylene Individual Backshell/Cable Clamp 90°/180° 1 Shell Size Polypropylene Individual Backshell/Cable Clamp 90°/180° 1 Shell Size Polypropylene Individual Product Highlights:Backshell/Cable ClampCable Clamp Type = Box and LidStraight(180°)/90° Cable Exit AngleCable Insulation Diameter = 4.06 mmShell Size = 1Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, D, PLASTIC, 9WAY Hood;D-Sub;9Pos;Str./90DegExit;AMP;Thermoplastic;0.160In.CblDia TE Connectivity 207467 系列 9 路 直 黑色 PP，热塑性 D-sub 连接器底壳 CABLE CLAMP KIT,SZ 1 |
| 分类 |
商业参数
| 交货时间 | 25 Days | 子类别 | Backshells |
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL94V-0 |
机械参数
| 颜色 | Black | 深度 | 43.18 mm |
| 高度 | 16 mm | 重量 | 0.01 |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 出线方向 | Straight(180°)/90° |
| 电缆类型 | Round | 外壳尺寸 | 1 |
| 屏蔽类型 | No | 螺纹尺寸 | None |
| 外壳镀层 | Plastic | 电缆直径 | 4.06 mm |
| 电缆端类型 | Variable Entries | 电缆材料 | Thermoplastic |
| 螺丝材料 | :Steel | 外壳材料（壳体） | Thermoplastic |
| 本体材料 | :Thermoplastic | 包装数量 | Individual Kit |
| 电缆端接方式 | Box and Lid | 连接器颜色 | :Black |
| 绝缘直径 | 4.06 [0.160] | 位数 | 9 |
| 镀层厚度（通用） | Zinc | 外壳尺寸-插件 | :1 |
| 衬套/护套类型 | Without | 电缆对数 | 2 |
| 螺钉材料 - 镀层 | :Zinc | 后壳材料及镀层 | Thermoplastic |
| 控制侧电缆固定器 | Without | ||
产品信息
| 备注 | Cable diameter is adjustable by changing cable support gates. Use the flat side | 类型 | Backshell and Cable Clamp |
| 系列 | :AMPLIMITE | 产品特性 | Assembly Kit |
| 硬件配件 | Assembly Hardware, Strain Relief | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Backshell/Cable Clamp |
| 附件类型 | Hinged Backshell | 射频系列/标准 | 207467 |
