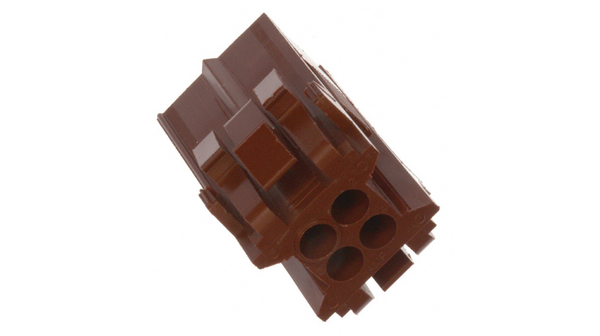

207016-1
| 制造商 | |
| 描述 | Conn Housing RCP 4 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 4 POS METRIMATE Housing,recpt,Metrimate,sq grid,4 Way Pin & Socket Connectors RECP 4P METMATE Conn Housing RCP 4 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 4ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, RECEPT 4 PIN HOUSING, RECEPTACLE, 4WAY, 5 Connector,SoftShell;Receptacle;4;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 4 Contact DesignMale Metrimate, 207016-1, TE Connectivity TE Connectivity Metrimate 系列 2 行 5mm 节距 4 路 直 母 压接连接器外壳 4 POS SQ GRID METRIMATE RCPT |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL,VDE | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 33.02mm |
| 间距 | 5 mm | 长度 | 17.86mm |
| 重量 | 0.00568 | 包装方式 | Bulk |
| 排间距 | 0.197" (5.00mm) | 触头类型 | Male Pin |
| 极化 | PolarizingTab | 第二连接器 | With |
| 外壳颜色 | Red | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Housing |
| 接触镀层 | :- | 紧固类型 | Latch Lock |
| 安装样式 | Panel | 排数 | 2 |
| 轴直径 | Without | 连接器用途 | Square Grid |
| 锁定特性 | Locking Tab | 触头材料 | :- |
| 壳体材料 | Thermoplastic - GF | 总长度 | 33.02 mm |
| 安装特性 | Without | 包装数量 | 1,000 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.197" |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :Red |
| 传感器连接器 | Without | 配接方向 | Polarizing Tab |
| 触点数 | 4 | 接触件端接 | Crimp and Solder |
| 位数 | 4 | 外壳尺寸-插件 | :- |
| 中心触点表面处理 | 5.0 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP Metrimate |
| 编码、键控 | No | 制造商全称 | AMP |
| 产品子类型 | Housing | 配置 | SquareGrid |
| 其他规格 | No | 适用产品/相关产品 | Square Grid Pin & Socket Connector |
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66406-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors PIN 30-26 BR/AU SIG TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp Contact; male; 0.05÷0.15mm2; 26÷30AWG; Type III+; gold plated III+ PIN,30-26,30AU/FL,LP
66106-7
te connectivity / amp
III+ PIN,26-24,15AU/FL,STRIP Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors TYPE III + PIN 26-24 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66602-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Standard Circular Connector PIN 18-14 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-14AWG;Crimp MultiMate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,30AU/FL,LP
66332-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG GOLD CRIMP Standard Circular Contacts PIN 24-20 30AWG REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,24-20,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金触点 III+ PIN,24-20,30AU/FL,STRIP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP

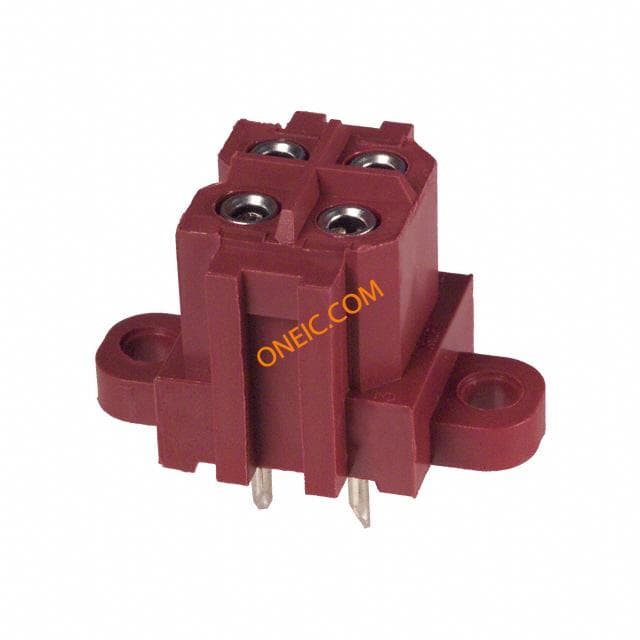

207496-3
te connectivity / amp

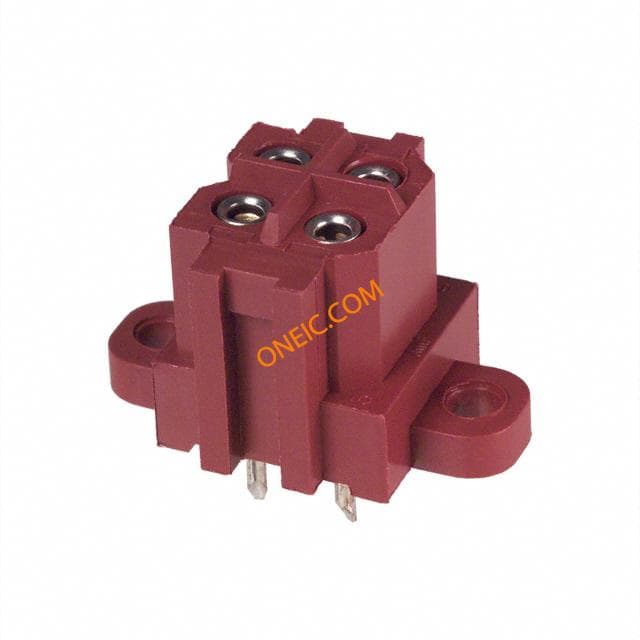

Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT GOLD Pin & Socket Connectors SKT HDR 4P METMATE 252 SKT HDR ASSY,4 POSN,METRIMATE
207496-1
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT TIN Pin & Socket Connectors SKT HDR ASSY 4P METRIMATE 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,4 POSN,METRIMATE
207496-8
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HDR SCKT 4POS METRIMATE TIN IC & Component Sockets SKT HDR ASSY 4P MMATE LF
66359-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Pin & Socket Connectors III+ PIN18-1415 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,18-14,15AU/FL,STRIP Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,15AU/FL,STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
66400-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Circular Contacts PIN 24-20AWG BULK CONTACT PIN 20-24AWG CRIMP GOLD Contact male,24-20 awg,crimp Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 24-20AWG Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
207496-7
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT TIN Header vert 4 way Socket Metimate Pin & Socket Connectors 4P SOCKET HEADER TIN METRIMATE SKT HDR ASSY,4P,MMATE LF SKT HDR ASSY,4P,MMATE LF Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, Headervert4waySocketMetimate TE Connectivity Metrimate 系列 工业电源 通孔 插座 , 14A额定电流, 600 V 交流/直流
1-66359-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Pin & Socket Connectors PIN 18-14AWG REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,18-14,30AU/FL,STRIP Multimate Type III+ Series 18-14 AWG Wire to Cable Crimp Signal Pin Contact III+ PIN,18-14,30AU/FL,STRIP
1-66098-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG TIN CRIMP 1.57mm pin contact 18-16 AWG type 3 Sn Pin & Socket Connectors PIN 18-16 BR/SN SIG Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinBright Tin Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG18-16 CONTACT, CRIMP, PIN, 18-16AWG, REEL TYPEIIICONTACTSSTR,III+PIN,18-16,TINSTRIP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 16 AWG 线规格 III+ PIN,18-16,TIN STRIP

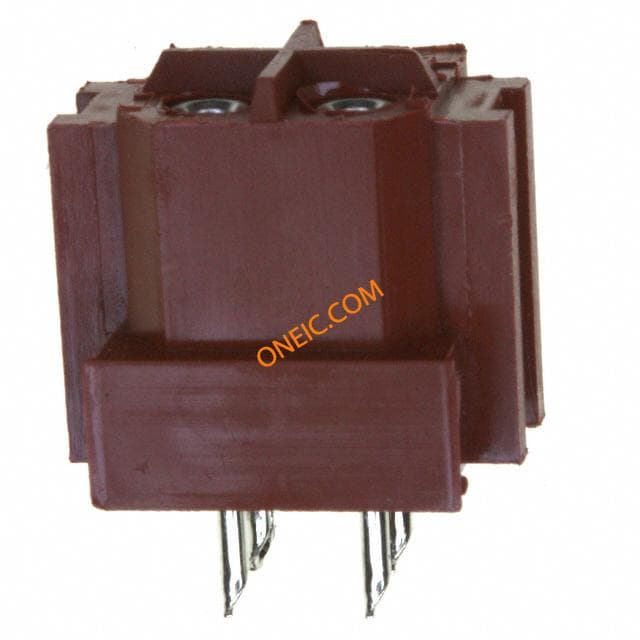

207496-2
