206438-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 57 POS Crimp ST Panel Mount 57 Terminal 1 Port CPC Connectors CONN RECEPT CPC 57POS REV SER 2 57 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector REC SQUARE REV 23-57 Conn CPC SKT 57 POS Crimp ST Panel Mount 57 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 57ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 57WAY ConnectorHousing;CPCRecept.Assy;57Pos;Sz23;Series2;PanelMnt;RevSex TE Connectivity 57路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 23-57 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 57 | 最大额定电流 | :7.5A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 44.45 mm |
| 高度 | 44.45 mm | 密封型 | No |
| 重量 | 0.025 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 23 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 1-3/8 - 18 UNEF-2A |
| 触点形式 | 57Signal | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :23-57 | 本体材料 | :Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 总长度 | 23.47 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 57 |
| 面板开孔形状 | :40.9mm | 接触件尾部长度 | 20D |
| 绝缘直径 | 1.73 [0.068] | 位数 | 57 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 23-57 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 23-57 | 制造商全称 | Series2 |
| 产品子类型 | Connector | 射频系列/标准 | 206438 |
| 其他规格 | Without | 应用细节 | Commercial |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作温度 | :105°C | ||
相关型号
1658537-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBZ/SN Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 1658537-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,SOCKET,PLATED,20DF,STRIP,#20-24
66504-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 24-20AWG, CRIMP CRIMP SOCKET, 24-20AWG CONTACT, SOCKET, 24-20AWG, CRIMP, FULL REEL CONTACT,SOCKET,HDP-20,CRIMP,1.27-1.52MM HDP20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF SCKT CONT
66569-3
te connectivity / amp

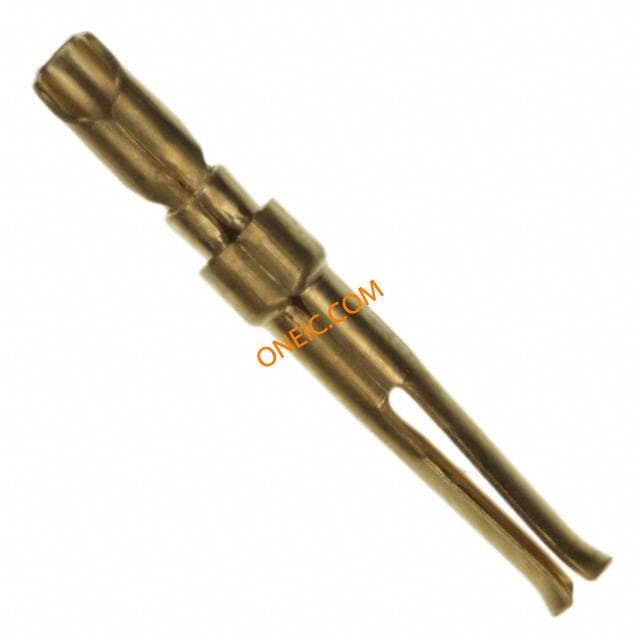

Contact SKT Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET SOLDER CAP 30AU AMPLIMITE HDP-20 socket crimp contact Standard Circular Connector SOLDER SKT CNT 18 Contact SKT Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 18AWG, SOLDER 20DFSOCKETCONT.L.P. Contact; female; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Socket Contact Crimp Contact 7.5 A, 66569-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 焊杯 插座 D-sub 连接器触点, 镀金镀镍 触点, 22 → 18 AWG 20DF SOCKET CONT. L.P.
1658538-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 28-24 BR/AU 20000 Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-24AWG, CRIMP CONTACTFEMALECRIMP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG SOCKET CONT DUPL PLT STRIP HD-
66504-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONTACT SKT 20-24AWG CRIMP GOLD Pin & Socket Connectors SOCKET 24-20AWG 50AU 20000 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketPhosphor Bronze Contact Base MaterialWire Termination Type = CrimpSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKETCONTACT,20DF,PLATED SocketContact,20DF,Plated SOCKET CONTACT,20DF,PLATED
66505-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP Pin & Socket Connectors HD-20 (24-28) AWG CRIMP SOCKET Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD-20S&FCONTAUPL,HD20DFSOCKETPLTD TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 插座 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF SOCKET PLTD
206437-1
te connectivity / amp
Conn CPC PIN 57 POS Crimp ST Cable Mount 57 Terminal 1 Port CPC Connectors CONN PLUG CPC 57POS REV SER 2 57 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector PLUG REVERSE 23-57 Conn CPC PIN 57 POS Crimp ST Cable Mount 57 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 5757 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 57 WAY, CABLE ConnectorHousing;CPCPlugAssy;57Pos.;Sz.23;Series2;FreeHang;RevSex Plug CPC2 Poles=57, accepts male contacts / Free hanging/cable mount, 206437-1, TE Connectivity TE Connectivity 57路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 23-57
1658537-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 26-22 PHBR/AU Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT. SOCKET, AWG24-20, HDP-20 CONTACT,SOCKET,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 插座 D-sub 连接器触点, 镀金 触点, 24 → 20 AWG SOCKET CONT DUPL PLT STRIP HD-
66505-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 28-24 CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 28-24AWG, CRIMP CONTACT,SOCKET,HDP-20,CRIMP,.76-1.02MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG 20 DF SCKT CONT
66505-9
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Standard Circular Contacts SOCKET CONTACT 28-24 sel gold o/nickel Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP SOCKET, 28-24AWG SOCKETCONTACT,20DF Crimp Contact 7.5 A, 66505-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG SOCKET CONTACT, 20 DF
1658538-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SKT 28-24 BR/AU Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP 1658538-1 Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-24AWG, CRIMP DUPLSOCKETCONT-L.P. SOCKET CONT DUPL PLT LP HD-20
1658537-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET CONTACT Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Socket Contact 24-20AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 24-20AWG, CRIMP AMPLIMITESocketContact,Size20DFforHDP-20Series,24-20AWG,GoldFlash HDP-20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact SOCKET CONT DUPL PLT LP HD-20
6-66504-8
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts HD 20 DF SOCKET PLTD Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 6-66504-8 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 DF SOCKET PLTD
2-66505-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts 20 DF SOCKET D-Sub Contacts 20 DF SOCKET 20000 CONN SOCKET 24-28AWG GOLD CRIMP
1658537-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBR/AU Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 24-20AWG, CRIMP CONTACT,SOCKET,HDP-20,PLATED,CRIMP,1.27-1.52MM SOCKET CONT DUPL PLT STRIP HD-
66504-9
te connectivity / amp

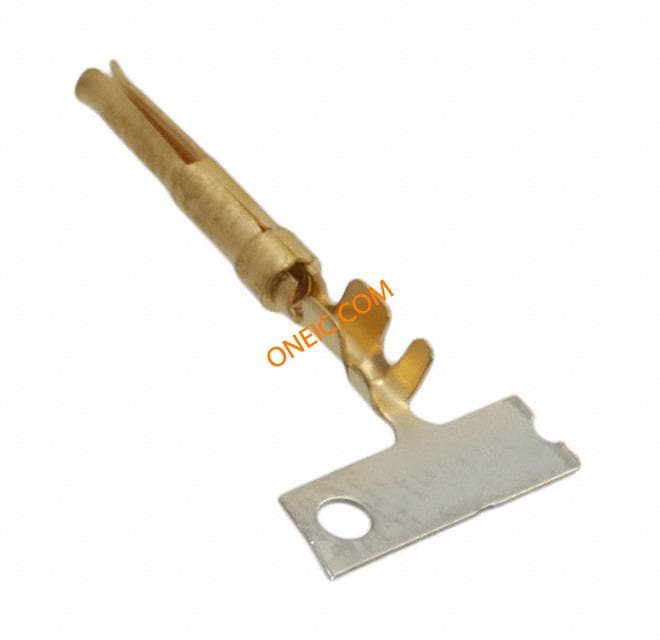

Contact SKT Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Pin & Socket Connectors SOCKET CONTACT 24-20 sel gold o/nickel Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, RECEPTACLE, 24-20AWG SOCKETCONTACT,20DF AMPLIMITE HDP-20 Series 24-20 AWG Insulation Support Crimp Snap Socket Contact Crimp Contact 7.5 A, 66504-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG
