202757-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 3.81mm ST Loose Piece M Series Connectors CONN RCPT HOUSING 6POS Pin & Socket Connectors HSG REC 006P Conn Housing RCP 6 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 6Diallyl Phthalate Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 6 PL. FEM. BLOCK |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 363 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Blue | 间距 | 3.81 mm |
| 宽度 | 9.65 mm [ .38 in ] | 高度 | 25.4 mm [ 1 in ] |
| 长度 | 19.23 mm [ .757 in ] | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 外壳颜色 | Blue |
| 安装类型 | Straight | 连接器类型 | Standard |
| 排数 | 2 | 外壳材料（壳体） | 母端, 母端 |
| 连接器用途 | Receptacle | 壳体材料 | Diallyl Phthalate |
| 安装特性 | None | 包装数量 | Loose Piece |
| 面板安装类型 | 带有 | 端接样式 | 插座, 插针 |
| 触点数 | 6 | 位数 | 6 |
| 兼容外壳尺寸（如TM-700等） | 插头排 202756 | 中心触点材料 | No |
| 第一连接器安装类型 | Panel | ||
产品信息
| 备注 | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
环境参数
| 工作范围 | 不密封 | 工作温度 | -65 – 125 °C [ -85 – 257 °F ] |
相关型号
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66428-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors 30-26 III+ SKT 30AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 30-26AWG Contact;Socket;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG III+ SKT,30-26,30AU/FL,LP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP

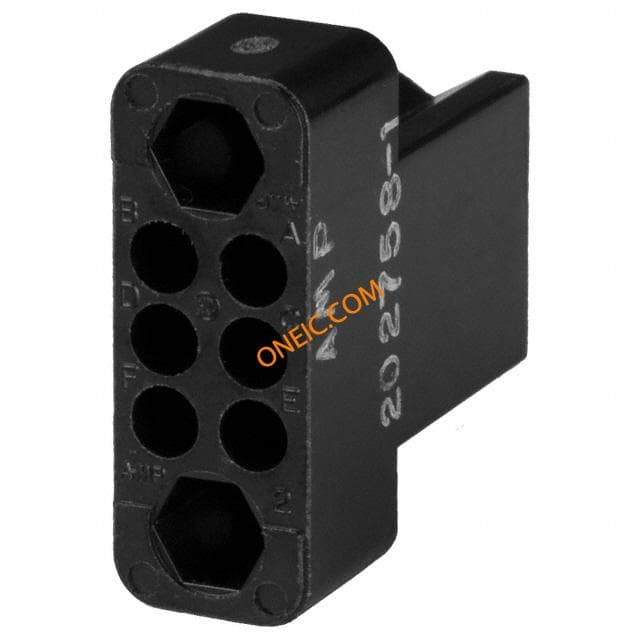

202758-1
te connectivity / amp
Conn Housing PL 6 POS 3.81mm ST Panel Mount Loose Piece M Series Connectors CONN HOUSING PLUG 6POS BLACK Pin & Socket Connectors MIN RECEP BLOCK MALE 6P M Series Connectors Product Highlights:HousingNumber of Positions = 6Phenolic Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, PLUG, 6WAY MIN.RECP.BLOCK-MALE 6 POS.
205201-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 Socket Contact 24-20AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Range = 0.2 - 0.6 [24-20] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 24-20AWG, CRIMP AMPLIMITEHDP-20SocketContact,24-20AWG,GoldFlashoverNickel,Crimp SOCKET CONT.

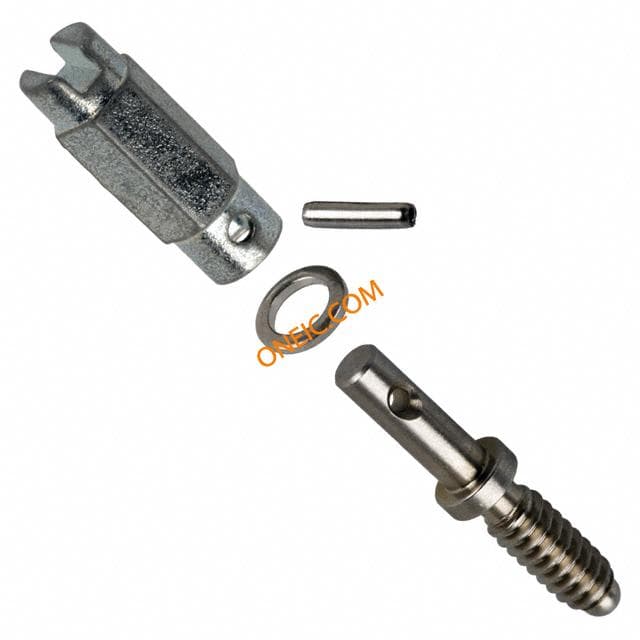

201827-1
