点击放大查看

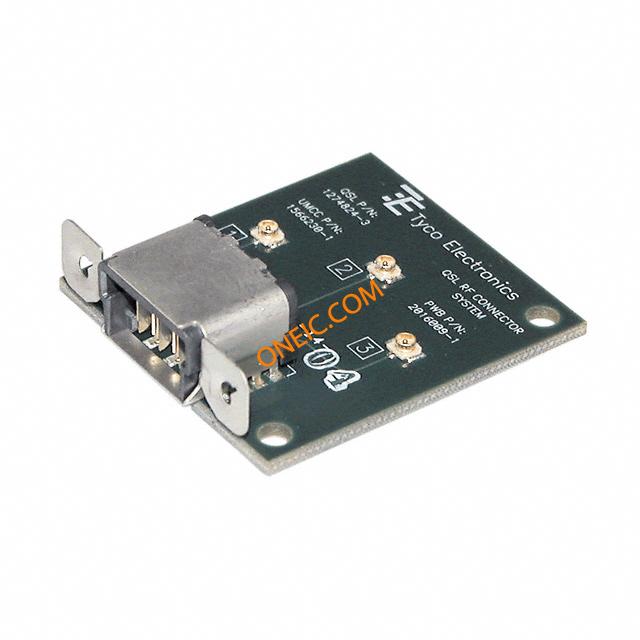

2016008-1
| 制造商 | |
| 描述 | QSL /UMCC RCP/RCP Right Angle/Straight RF Development Tools QSL to UMCC TEST BOARD TEST BRD W/RCPT 3 PORT QSL-UMCC QSL3PortTestBrdw/Recpt,QSLtoUMCC |
| 分类 |
商业参数
| 产品类别 | RF Development Tools | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 转换速率 | Between Series | 最大频率 | 6GHz |
机械参数
| 包装方式 | Bulk | 安装类型 | Right Angle/Straight |
产品信息
| 类型 | QSL /UMCC | 连接器性别 | RCP/RCP |
| 产品特性 | Test Board | 适配器类型 | Plug to Jack |
| 中心极性 | Female to Female | 适配器系列 | UMCC to QSL |
| 转换端（适配器端） | QSL Jack, Female Socket | 转换自（适配器端） | Ultra Miniature Coaxial Plug, Female Sockets (3) |
环境参数
| 插拔次数 | 500 | ||
文档与媒体
相关型号

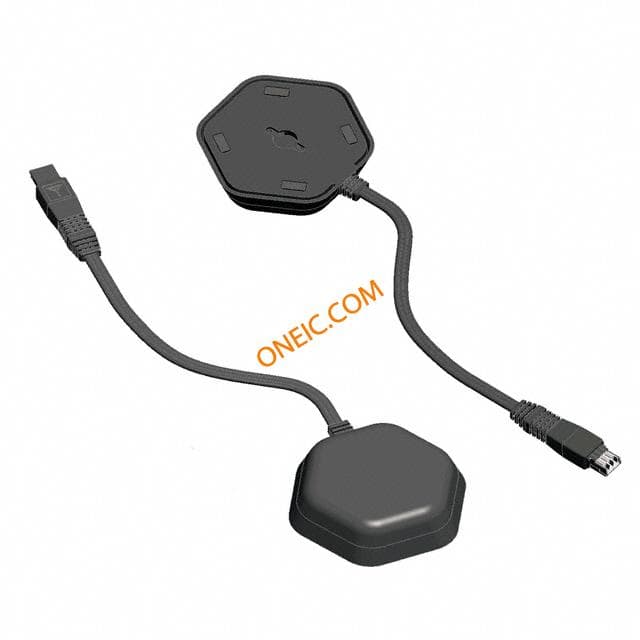

1513712-1
te connectivity / amp
Cable Assembly RG174 0.8m 3 POS QSL to Antenna Module QSL ANT ASSY 802.11A/B/G/N WIMAX Antennas ANTENNA MODULE 0.8 M WITH FLANGE 3portQSL,802.11a/b/g/nandWiMaxAntennaAssemblywithflange 0.8m 3x RG174 Ant. Mimo Wimax

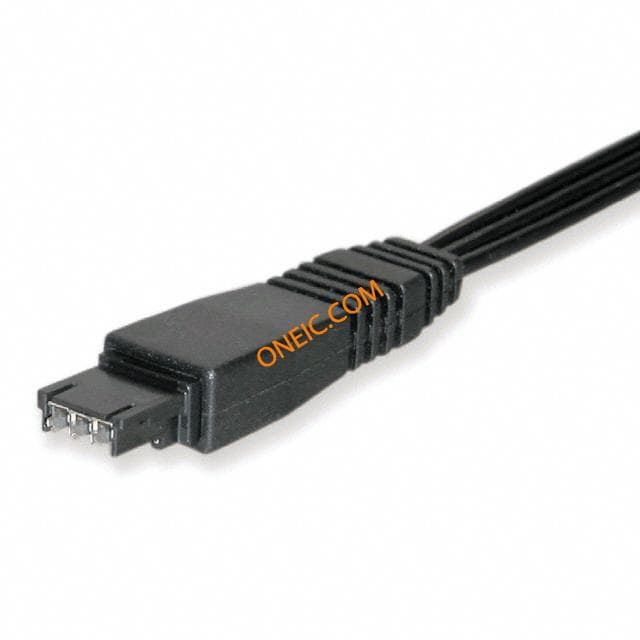

2015518-1
te connectivity / amp
Cable Assembly RG174 0.8m 3 POS QSL PL CABLE ASSY QSL PLUG JUMPER 3PORT RF Cable Assemblies THREE PORT PLUG JUMPER ASSY

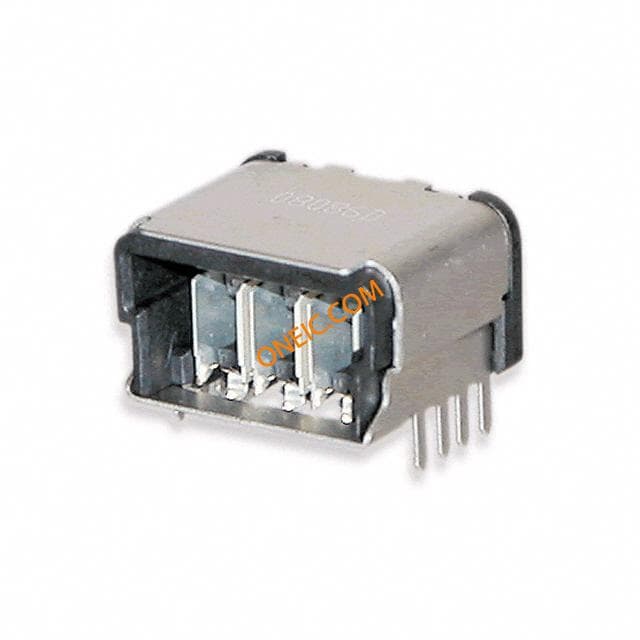

2016032-1
