201578-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONTACT PIN ASSY. Multimate CONN PIN 20-24AWG GOLD CRIMP Type II Series Size 16 Male Circular Connector Contact, Crimp,Wire size 24 to 20AWG Pin & Socket Connectors CONTACT PIN ASSEMBLY Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 1.57 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN GOLD CRIMP Pin,Signal,TypeII,Crimp,24-20AWG,Yellow/Red TYPE II Series 24-20 AWG Crimp Snap-In Insulated Socket Multimate Contact TE Connectivity Type II 系列 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | 900 | 工厂包装数量 | 900 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 最大额定电流 | 13 A | ||
机械参数
| 长度 | 27.61mm | 重量 | 0.00068 |
| 镀层 | Gold | 直径 | 3.25 mm |
| 材料（通用） | Copper Alloy | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触点尺寸 | 16 | 安装类型 | Cable Mount |
| 插针或插孔 | Pin | 外壳镀层 | Not Required |
| 接触镀层 | Gold over Nickel | 安装样式 | Cable |
| 触头材料 | Brass | 总长度 | 27.61 mm |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 1 POS | 接触件端接 | Crimp |
| 镀层厚度（通用） | 30µin (0.76µm) | 线规或范围 - AWG | 24-20 |
产品信息
| 类型 | Machined | 连接器性别 | Male |
| 系列 | Type II | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Type II Series Connectors | ||
相关型号
1-601967-6
te connectivity / amp

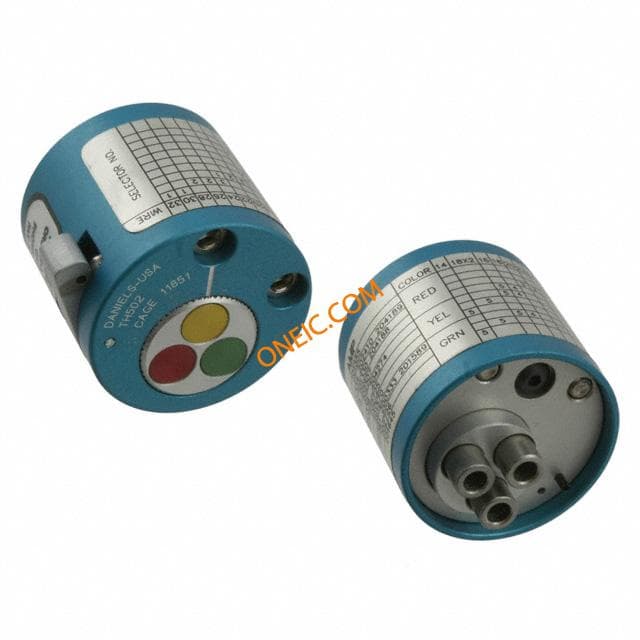

Connector Accessories Socket Turret Positioner TOOL TURRET FOR PINS 14AWG Crimpers POSITIONER TYPE III C POSITIONER TYPE II CONTACTS
200893-2
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTION CPC CONTACTS Insertion Tool for CPC Contacts, Type I INSERTION TOOL, SERIES 1 InsertionToolforCPCContacts,TypeIandII,Maxinsulationdiameterof0.09 Insertion tool cont, 200893-2, TE Connectivity INSERTION TOOL CONT
200346-4
te connectivity / amp
Conn Housing RCP 20 POS 3.81mm ST Loose Piece M Series Connectors CONN RCPT 20POS FREE HANG/PNL MT Modular Connectors / Ethernet Connectors FEMALE BLOCK-20 POS. M Series Connectors Product Highlights:Housing20 PositionsDiallyl Phthalate Housing MaterialHousing Gender = ReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace,
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16
202758-3
te connectivity / amp
Conn Housing PL 6 POS 3.81mm ST Panel Mount Loose Piece M Series Connectors CONN PLUG BLOCK 6POS BLUE IC & Component Sockets 6 PL. BLOCK M Series Connectors Product Highlights:HousingNumber of Positions = 6Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, 6 PL. BLOCK
200346-2
te connectivity / amp

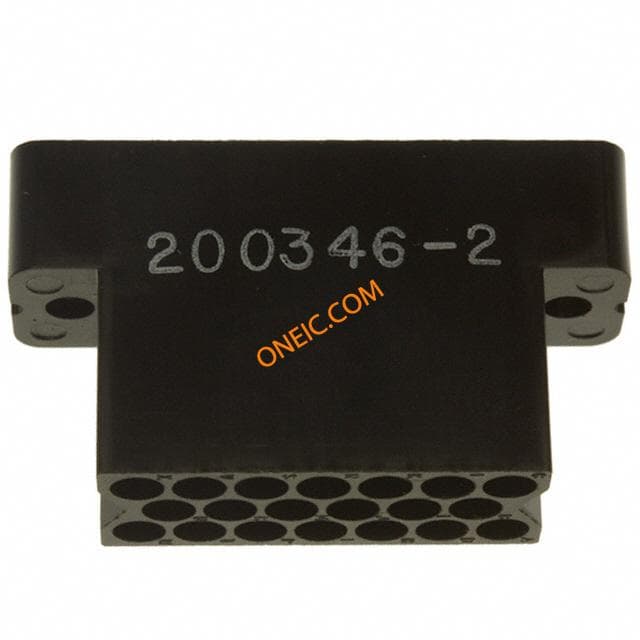

Conn Housing RCP 20 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 20POS BLACK Connector,M series block,female,20 Way Pin & Socket Connectors FEM BLOCK CONN 20 POS M Series Connectors Product Highlights:HousingNumber of Positions = 20Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Connector,Mseriesblock,female,20Way TE Connectivity M 系列 4 行 3.81mm 节距 20 路 直 母 压接连接器外壳 FEMALE BLOCK 20 POS
90230-1
te connectivity / amp
Connector Accessories Tool Fram Die Set Punches & Dies DIE TYPE II P & S 69365 32-20 DIE TYPE II P & S 69365 32-20
201298-1
te connectivity / amp

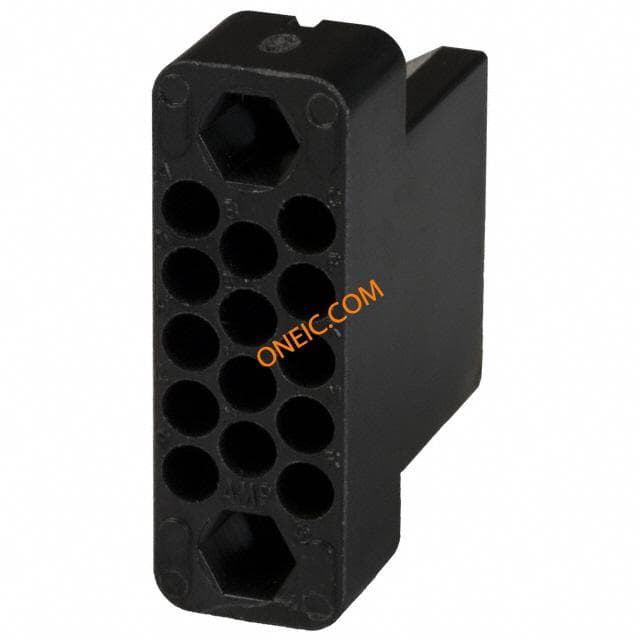

Conn Housing RCP 14 POS 3.81mm ST Loose Piece M Series Connectors CONN HOUSING RECEPT 14POS BLACK Housing receptacle 14 way M series Pin & Socket Connectors FEMALE BLOCK 14 PL. Conn Housing RCP 14 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 14Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECTANGULAR HOUSING, RECEPTACLE, 14WAY Connector;Phenolic;Black;Standard;14;FreeHanging,PanelMount Connector: rectangular; plug; female TE Connectivity M 系列 3 行 3.81mm 节距 14 路 直 母 压接连接器外壳 FEMALE BLOCK 14 PL.
201310-3
te connectivity / amp
Conn Housing PL 75 POS 3.81mm ST Loose Piece Ethernet & Telecom Connectors MALE BLOCK. 75 PL. MIN. RECT. M Series Connectors CONN PLUG BLOCK 75POS BLUE Modular Connectors / Ethernet Connectors MALE BLOCK. 75 PL. MIN. RECT. Conn Housing PL 75 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 75Diallyl Phthalate Housing MaterialPlugConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, MALE BLOCK. 75 PL.-MIN. RECT.
202650-4
te connectivity / amp
Connector Accessories Rectangular Module Phenolic Black G Series Modular Connectors (A Multimate Product) PIN MODULE, 23 POSN, G-SERIES Pin & Socket Connectors 23POS PIN RCPTL Connector Accessories Rectangular Module Phenolic Black Product Highlights:ModuleNumber of Positions = 23Phenolic Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate,
213802-1
te connectivity / amp

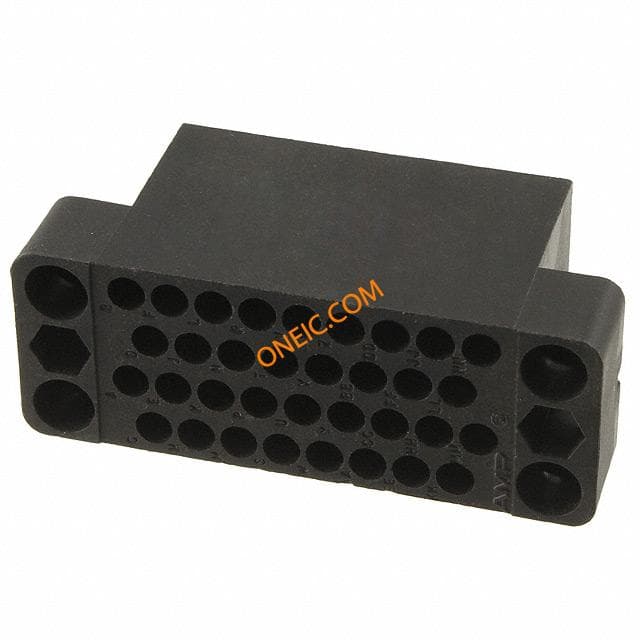

Conn Housing RCP 34 POS 3.81mm ST Loose Piece M Series Connectors M-SERIES RCPT HOUSING,34 POS Pin & Socket Connectors RCPT HOUSING 34 POS Conn Housing RCP 34 POS 3.81mm ST Loose Piece Product Highlights:HousingNumber of Positions = 34Polyester Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, M-SERIESRCPTHOUSING,34POS
201532-2
te connectivity / amp

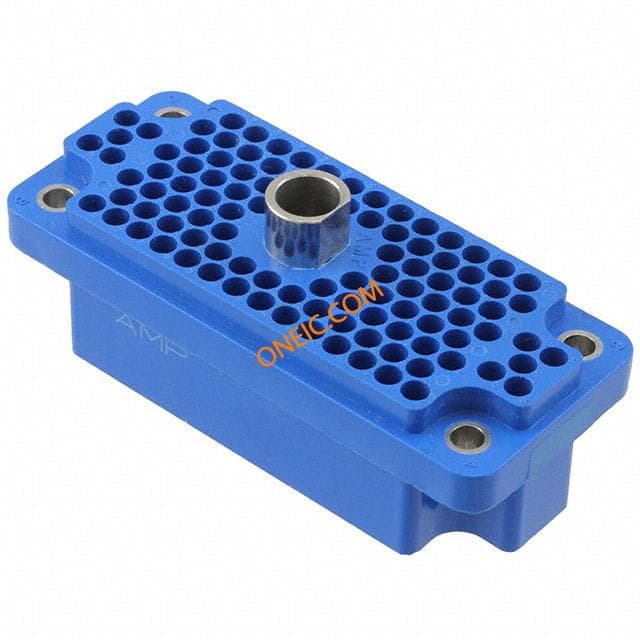

Conn Housing RCP 104 POS ST Loose Piece M Series Connectors CONN RECEPTACLE BLOCK HSG 104POS Pin & Socket Connectors M SRS PNL MNT RECP Conn Housing RCP 104 POS ST Loose Piece Product Highlights:HousingNumber of Positions = 104Diallyl Phthalate Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, RECEPT BLOCK,104 POSN,M SERIES
58541-2
te connectivity / amp
Specialty Hand Tools Easier On The Hand And Precise On The Crimp Crimpers PRO-CRIMPER DIE TOOL DIE FOR PRO-CRIMPER II PRO-CRIMPER HAND TOOL DIE
90249-2
te connectivity / amp
Dies For AMP-Tapetronic Machine Signal Contacts Punches & Dies DIE TYPE II CONTS 69875 DIE TYPE II CONTACTS 69875
202759-4
te connectivity / amp
Connector Accessories Rectangular Module Phthalate Blue G Series Modular Connectors (A Multimate Product) PIN MODULE 14 POS G-SERIES Pin & Socket Connectors PIN MODULE 14 POSN G-SERIES G Series Modular Connectors (A Multimate Product) Product Highlights:Contact Module14 PositionsDiallyl Phthalate Module MaterialPinPlugSearch Keywords:G Series Modular Connectors, Military Aerospace, Rectangular Industrial, Input/Output, Box-to-Box, RF/Coax, Miniature, polarized shells, retainer plate, PIN MODULE, 14 POSN, G-SERIES
194242-1
te connectivity / amp
Conn Housing PL 43 POS ST Panel Mount Drawer Connectors, High Current AMPOWER HOUSING,PLUG,43 POS Power to the Board 43P PLUG HOUSING Conn Housing PL 43 POS ST Panel Mount Product Highlights:HousingConnector Type = PlugNumber of Positions = 43Without 6/32 InsertSearch Keywords:Special Application, Precision Pin and Socket, cabled power, Card Edge, Board-to-Board, Power, Wire-to-Board,
91002-1
te connectivity / amp
Universal Mate N Lok Connectors Tools Hand Tools INSERTION TOOL tweezer style TOOL INSERTION .062 & .093 CONN Mate-N-Lok insertion tool TWEEZERSTYLEINSERTIONTOOLFORCPCCONNECTORSWI/MULTIMATECONTACTS Insertion tool, 91002-1, TE Connectivity TE Connectivity MATE-N-LOK 系列 插入工具 , 适用于针，插座触芯
58541-1
te connectivity / amp
Hand Tool For Signal Contacts Crimpers HANDLE & CRIMP DIE TOOL PRO-CRIMPER II W/DIE SET Crimper,Ratchet,24-14AWG,67MULTIMATEType Procrimp Tool & Die Crimper;Ratchet;24-14AWG;67MULTIMATETypeIISeriesContacts;58541-2Die PRO-CRIMPER HAND TOOL & DIE
200838-2
te connectivity / amp

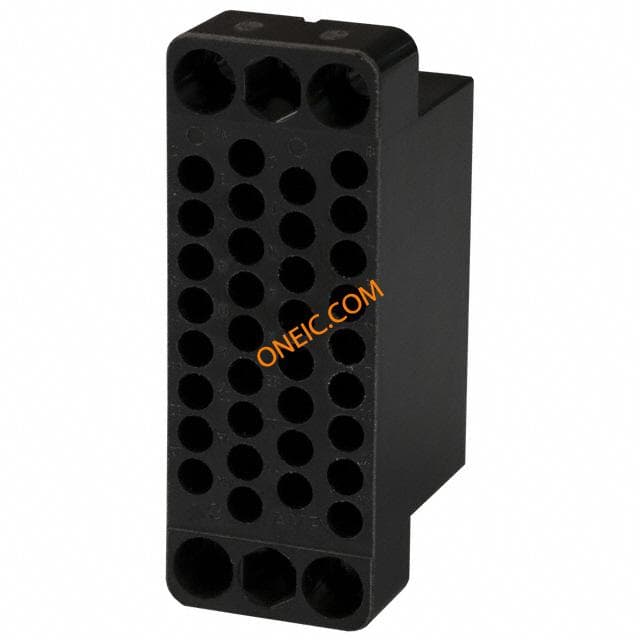

Conn Housing RCP 34 POS 3.81mm ST Panel Mount Loose Piece M Series Connectors CONN HOUSING RECEPT 34POS BLACK Housing receptacle 34 way M series Pin & Socket Connectors 34P HOUSING SOCKET Conn Housing RCP 34 POS 3.81mm ST Panel Mount Loose Piece Product Highlights:HousingNumber of Positions = 34Phenolic Housing MaterialReceptacleConnector Type = StandardSearch Keywords:Pin & Socket, NIC (Network Interface Cards) & PC Cards, cabled power, wire to wire, wire to board, wire to panel, MIL-C-28748, ISO 2593, ISO 408-2593, cable to cable, cable to panel, box to box, rectangular, industrial, military/aerospace, Connector;Phenolic;Black;Standard;34;FreeHanging,PanelMount TE Connectivity M 系列 4 行 3.81mm 节距 34 路 直 母 压接连接器外壳 BLOCK,34 POSN,M SERIES
