点击放大查看

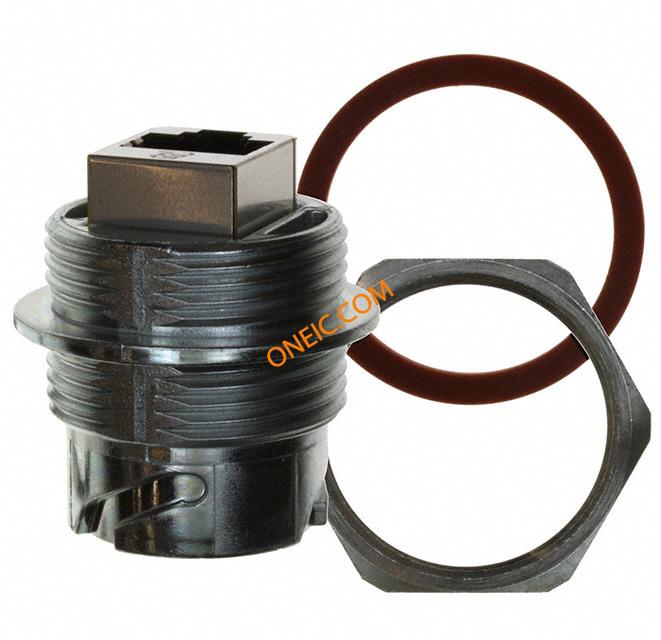

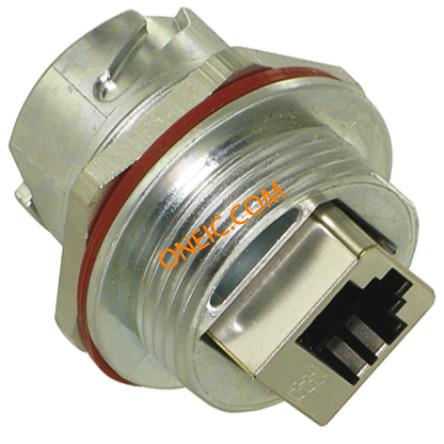

2008615-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e Industrial Communication Products COUPLER MODULAR 8POS-8POS RJ45 panel mount receptacle kit,shielded Modular Connectors / Ethernet Connectors Recpt Kit Solid Shielded Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e Product Highlights:ConnectorHousing Gender = ReceptacleShieldedMount Type = Panel MountTerminate To Printed Circuit BoardSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 RJ45 ETHERNET CONN, RCPT, 8WAY, PANEL Connector,ReceptacleKit,IP67,ODVACompliant,MetalShell,Unshielded Shielded Recpt Kit, Metal Shel |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Reflow solder capable to 245°C / Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
机械参数
| 重量 | 0 | 屏蔽 | Shielded |
| 屏蔽类型 | Yes | 安装类型 | Panel Mount |
| 外壳镀层 | Silicone Rubber | 连接器类型 | :RJ45 |
| 接触镀层 | Gold over Nickel | 连接器样式 | Receptacle |
| 屏蔽材料 | Brass | 触头材料 | Phosphor Bronze |
| 壳体材料 | Zinc | 安装特性 | Front Side Nut |
| 主要材料 | Phosphor Bronze | 触点数 | 8 |
| 接触件端接 | :Solder | 外壳材料及表面处理 | Zinc, Trivalent Chromate Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | RJ-45 | 等级 | Industrial Ethernet |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Circular Bayonet Coupling | 套件类型 | Connector Kit |
| USOC 编码 | RJ45 | 制造商全称 | Tyco Electronics |
| 产品子类型 | Circular | 图案编号 | RJ45 |
| 端口数 | 1 | 其他规格 | Printed Circuit Board |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
