点击放大查看

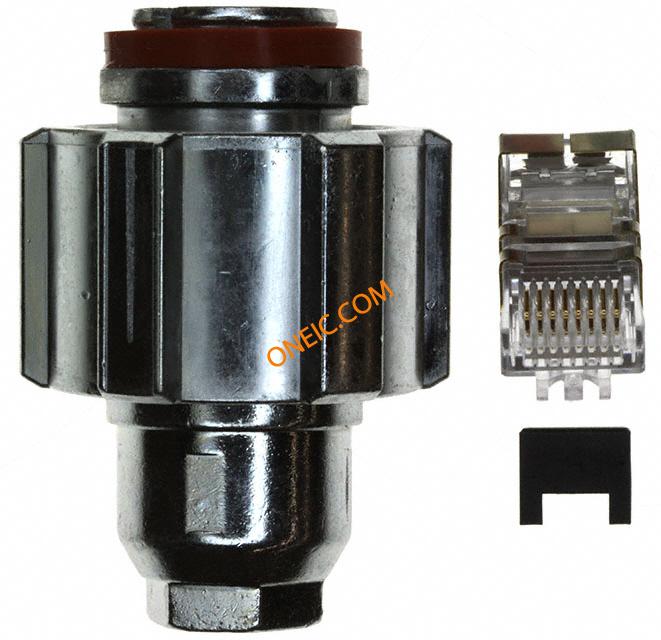

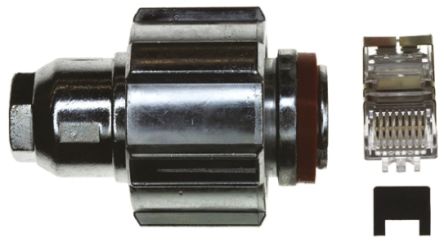

2008614-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Industrial Communication Products CONN MOD PLUG 8P8C SHIELDED Modular Connectors / Ethernet Connectors Plug Kit Stranded Shielded Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 RJ45 ETHERNET CONN, PLUG, 8WAY, CABLE Connector,PlugKit,IP67,ODVACompliant,MetalShell,StrandedWire,Shielded Shielded Plug Kit for Stranded Wire TE Connectivity 直 公 RJ45 连接器 , Cat5e, 电缆安装型 Shielded Plug Kit,8P Sol Wire |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Reflow solder capable to 245°C / Reflow solder capable to 260°C | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 接口 | Open Device-Net Vendors Association (ODVA) | ||
机械参数
| 颜色 | Silver | 长度 | 2.319" (58.90mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 屏蔽 | Shielded | 导线类型 | Stranded |
| 电缆类型 | Round Cable, Stranded Wires | 导线线规 | 0.12-0.2² [26-24] |
| 屏蔽类型 | Yes | 端接方式 | IDC |
| 螺母材料 | Zinc | 安装类型 | Cable Mount |
| 外壳镀层 | Silicone Rubber | 电缆直径 | 4.5 - 6.9 |
| 连接器类型 | :RJ45 | 接触镀层 | Gold over Nickel |
| 安装样式 | Wire | 连接器样式 | Plug |
| 屏蔽材料 | Copper Alloy | 触头材料 | Phosphor Bronze |
| 壳体材料 | Zinc | 主要材料 | Phosphor Bronze |
| 触点数 | 8 | 接触件端接 | :IDC / IDT |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | For stranded wire only. / For use with Cat 5e cable. | 类型 | RJ-45 |
| 等级 | Industrial Ethernet | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 制造商全称 | Tyco Electronics |
| 产品子类型 | Circular | 图案编号 | RJ45 |
| 端口数 | 1 | 其他规格 | Cable |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | - 40 C to + 85 C | ||
