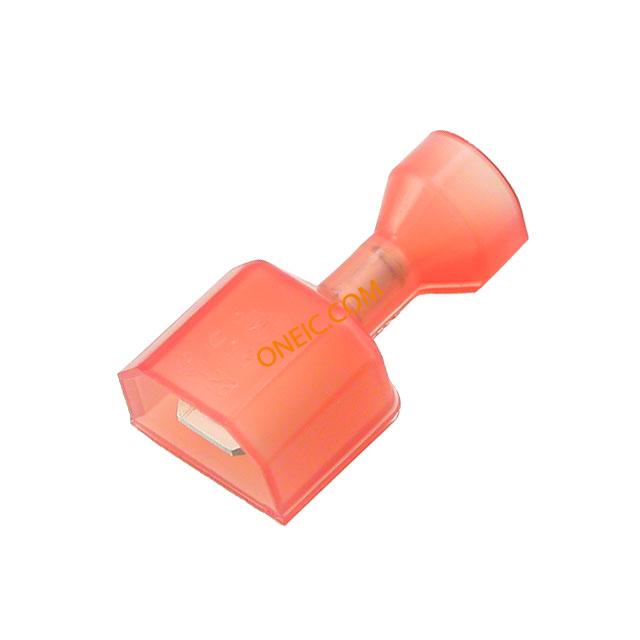

2-521192-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 23.74mm 13.25mm Tin Loose Piece Terminals ULTRA FAST TAB L.P. LID Ultra-Fast Receptacles & Tabs CONN TAB 18-22AWG .250 TIN Quick Disconnect Terminal 18-22AWG RCP 23.74mm 13.25mm Tin Loose Piece Product Highlights:TabProprietary Name = Ultra-FastTab Fit = 6.35 x 0.81 mmBrass MaterialInsulation Diameter = 5.84 [.230] Max. mm [in]Search Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, MALE DISCONNECT, 0.25IN, RED 250ULTRA-FASTTAB22-18TPBR ULTRA-FAST 250 ASY REC 22-18 TPBR |
| 分类 |
商业参数
| 产品 | Tab Terminals | 其他名称 | 25211922 |
| 产品类别 | Terminals | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Red | 表面处理 | Tin |
| 重量 | 0 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 安装类型 | Straight | 螺柱/焊片尺寸 | :0.25" x 0.032" |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Male Disconnect | 接触镀层 | Tin |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.935" (23.75mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 5.84 [.230] Max. | 绝缘材料 - 材质 | Fully Insulated |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
产品信息
| 连接器性别 | Male | 系列 | 521 |
| 应用 | Standard | 产品子类型 | Tab |
| 专有名称 | Ultra-Fast | 其他规格 | Wire Crimp |
