点击放大查看

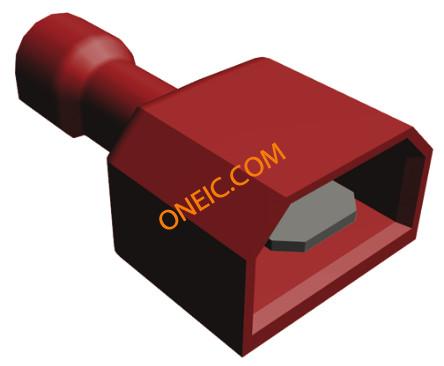

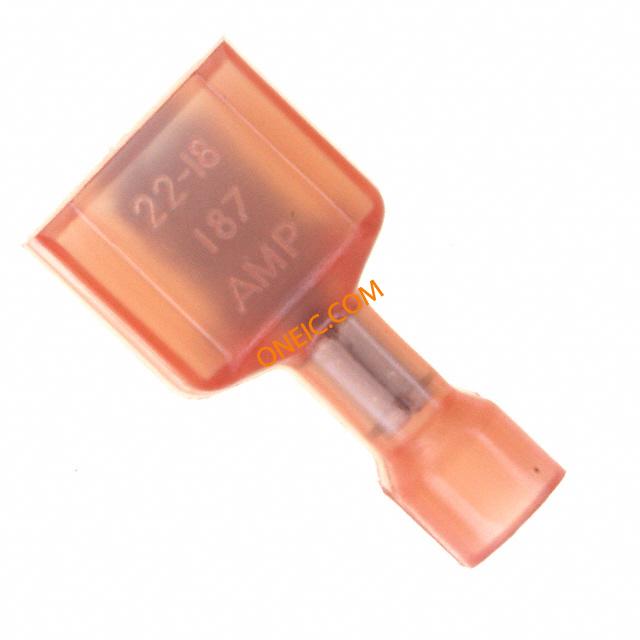

2-521105-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 20.14mm 11.38mm Tin Loose Piece Terminals NYL-REC 22-18 RED .032 X .187 Ultra-Fast Receptacles & Tabs CONN ULTRA FAST 18-22AWG .187 Tab terminal, Ultra-Fast 187, AWG 22-18 Quick Disconnect Terminal 18-22AWG RCP 20.14mm 11.38mm Tin Loose Piece Product Highlights:TabProprietary Name = Ultra-FastTab Fit = 4.75 x 0.81 mmBrass MaterialInsulation Diameter = 3.43 [.135] Max. mm [in]Search Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, MALE DISCONNECT, 4.75MM, RED TAB,ULTRA-FAST,4.75X0.81MM,22-18AWG,BRASS TE Connectivity 透明，红色 Ultra-Fast .187 系列 绝缘 压接接头端子, 4.75 x 0.81mm, 镀锡触芯 ULTRA-FAST 187 ASY REC 22-18 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 25211052 |
| 产品类别 | Terminals | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Red | 深度 | 11.38 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 遮蔽类型 | Shrouded | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 电缆类型 | Regular Wire | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.187 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Male Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.793" (20.14mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | Translucent | 绝缘直径 | 3.43 [.135] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | Fully Insulated |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
产品信息
| 类型 | Tab | 连接器性别 | Female |
| 系列 | 187 | 应用 | Standard |
| 产品子类型 | Tab | 专有名称 | Ultra-Fast |
| 其他规格 | Wire Crimp | ||
环境参数
| 工作温度 | -40C to 85C | ||
