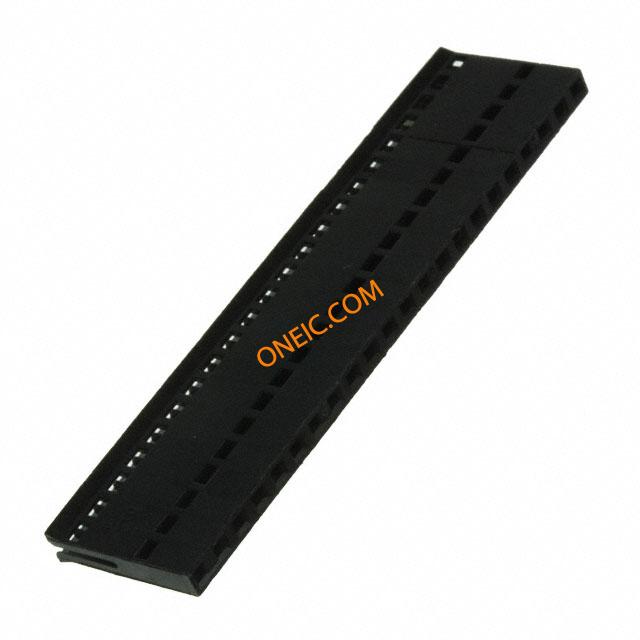

2-487378-1

制造商	TE Connectivity Ltd.
描述	FLEXIBLE FILM CONNECTORS Flexible Film Connectors 022 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors 022 HOUSING FFC RCPT 100CL SR Conn Housing PL 22 POS 2.54mm ST Conn Housing PL 22 POS 2.54mm ST Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector HOUSING, RECEPTACLE, FFC, 2.54MM, 22WAY 022HOUSINGFFCRCPT100CLSR
分类	连接器解决方案FFC/FPC连接器FFC/FPC连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

24873781

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	Yes

电气参数

额定电压

300V

最大额定电流

机械参数

颜色	Black	间距	0.100" (2.54mm)
重量	0.02	包装方式	Bulk
第二连接器	Without	连接器类型	Slimline
接触镀层	:-	排数	Single
连接器用途	Receptacle	触头材料	:-
触点位置	:-	壳体材料	Thermoplastic
总长度	2.54 [0.100]	安装特性	Without
面板安装类型	Without	FFC/FCB厚度	0.05-0.13mm
配接方向	Without	触点数	22
接触件端接	:-	位数	22

产品信息

连接器性别	Female	系列	:Slimline
产品子类型	Housing	连接类型	FFC Cable

环境参数

工作温度

-65°C ~ 105°C
