2-103638-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 22POS VERT .100 15AU Headers & Wire Housings 22 MTE HDR SRST LATCH .100CL 2-103638-1 .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 9 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 9 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mΩ |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 58.42 mm [ 2.3 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 安装特性 | 压具 |
| 包装数量 | 9 | 面板安装类型 | 垂直 |
| 端接样式 | Through Hole | 第一连接器类型 | 带罩 |
| 第一触头极性 | Pin (Male) | 触点数 | 22 |
| 端接表面处理 | 带有 | 接触件尾部长度 | 2.54 µm [ 100 µin ] |
| 位数 | 22 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 端子柱长度 | 5.84 mm [ .23 in ] | 接触镀层厚度 | 15µin (0.38µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 架构类型 | 否 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
文档与媒体
相关型号
2-487526-1
te connectivity / amp
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 22POS .100 W/LATCH FFC & FPC Connectors 022 HOUSING FFC RCPT 100CL SR 022 HOUSING FFC RCPT 100CL SR 022 HOUSING FFC RCPT 100CL SR Search Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
2-103648-1
te connectivity / amp
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 22POS .100 UNLOADED Headers & Wire Housings RCPT 22P .100 UNLOAD 22 MTE RCPT HSG SR RIB .100CL

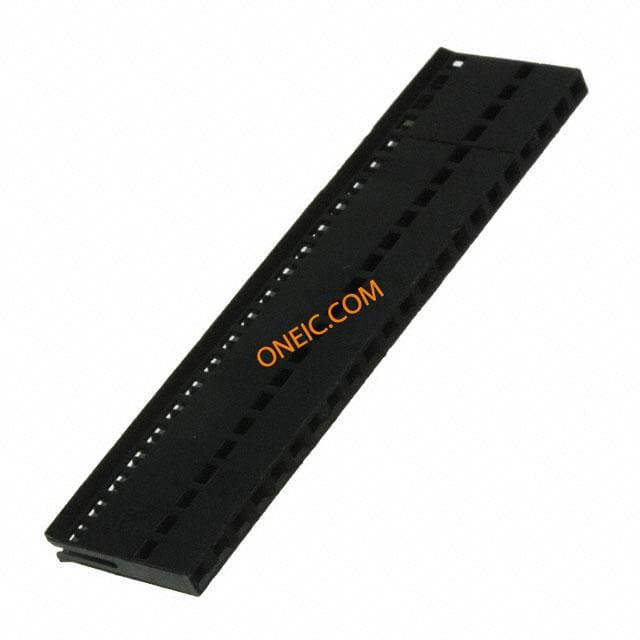

2-487378-1
