点击放大查看

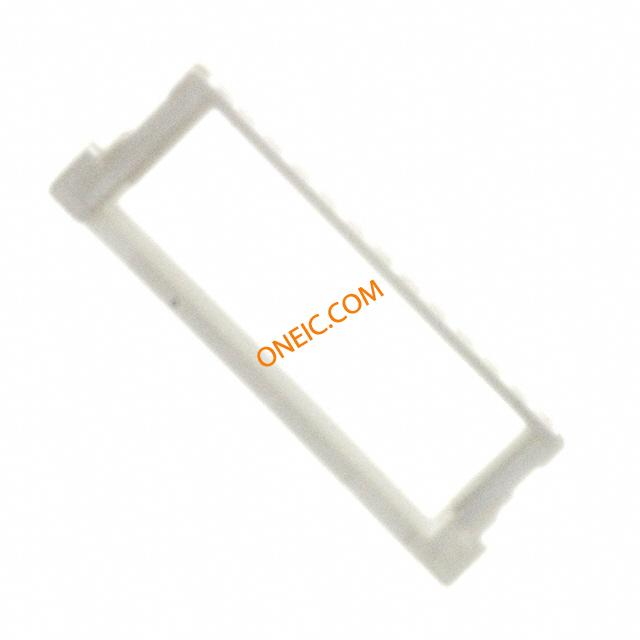

2-353294-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 22 POS Housing Holder Nylon 66 White Loose Piece 1.5mm AMP Mini CT CONN HOUSING 22POS DUAL 1.5MM Connector holder, 1.5mm,22 way, Mini-CT Headers & Wire Housings MOUNTING HOLDER 22P 1.5mm Connector Accessories 22 POS Housing Holder Nylon 66 White Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Connectorholder,1.5mm,22way,Mini-CT TE Connectivity AMP Mini CT 系列 PCB 壳体 AMP MINI D/R HDR HSG 22P NATU |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A99762 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 压接/IDC |
| 最大额定电流 | 2 | ||
机械参数
| 颜色 | White | 深度 | 6mm |
| 形状 | 矩形 | 宽度 | 7.4mm |
| 高度 | 7.4 mm [ .291 in ] | 长度 | 22mm |
| 包装方式 | 袋/盒 | 壳体颜色 | 白色 |
| 导线线规 | 28 – 24 | 触头类型 | 底座 |
| 连接器类型 | 线到板, 线到线, 线到面板, 线到面板 | 排数 | 2 |
| 壳体材料 | Nylon 66 | 总长度 | 1.50 [0.059] |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 触点数 | 22 | 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] |
| 位数 | 22 | ||
产品信息
| 备注 | Two receptacle connectors are applied per holder. | 类型 | Holder |
| 系列 | 2-353294 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Mounting Holder | 附件类型 | Shroud |
| 射频系列/标准 | 353294 | 其他规格 | 内部 |
| 适用产品/相关产品 | Mini CT Series | ||
环境参数
| 工作温度 | -65 – 105 °C [ -85 – 221 °F ] | ||
相关型号
1-353293-1
te connectivity / amp
Conn IDC Connector RCP 11 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 11POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,11W,Mini-CT Headers & Wire Housings RCPT 11 POS GRY MINI 1.5mm Conn IDC Connector RCP 11 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 11Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,11W,Mini-CT TE Connectivity AMP Mini CT 系列 11路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 11P GRAY

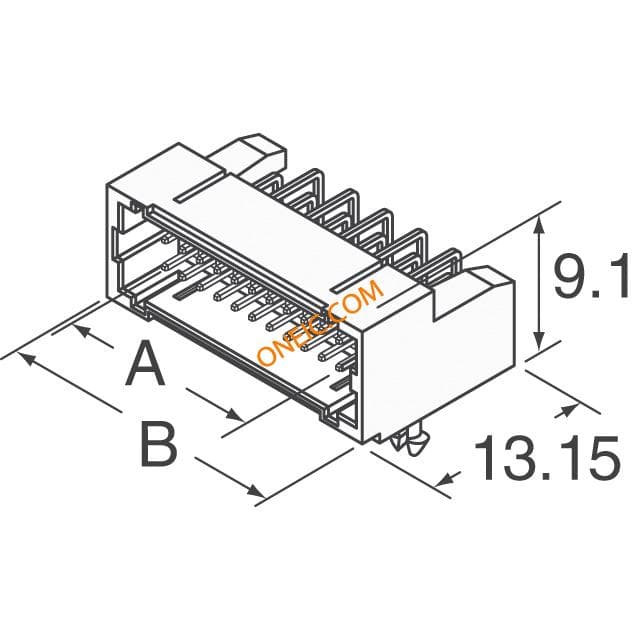

2-292262-2
