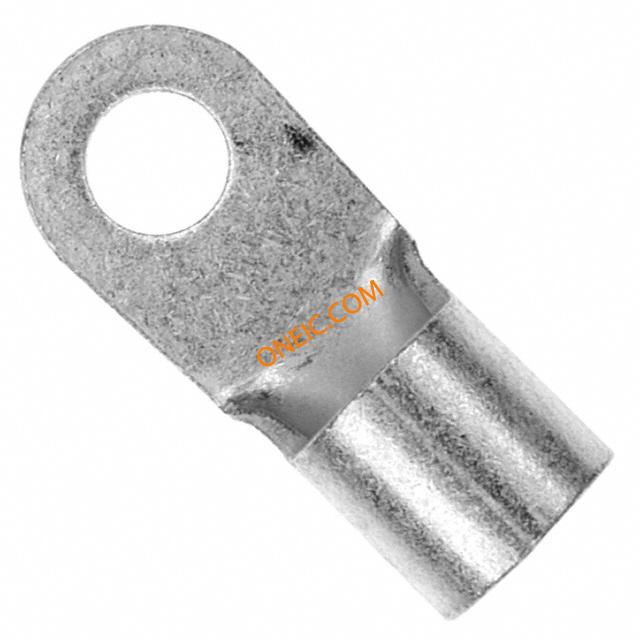

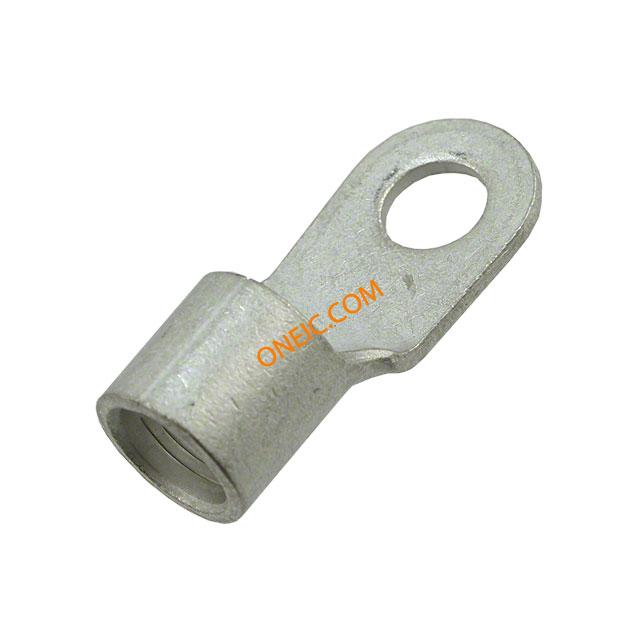

2-322870-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 2AWG 38.79mm 15.87mm Nickel Loose Piece Terminals STRATO-THERM HR 2 5/16 NIPL Ring and Spade Tongue Terminals CONN RING TONGUE 2AWG #5/16 Ring Tongue Terminal 2AWG 38.79mm 15.87mm Nickel Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B STRATO-THERM, HR 2 5/16 NIPL |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 核心类型 | Closed Barrel | ||
机械参数
| 形状 | RING-051 | 表面处理 | Nickel |
| 重量 | 12.775 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 1.78 [0.070] |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 螺钉尺寸 | 5/16, M8 |
| 导线线规 | 2 AWG | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 7.93 mm | 端子类型 | Circular |
| 电缆材料 | Solid or Stranded | 接触镀层 | Nickel |
| 端子样式 | Straight | 线束直径 | 9.39 mm |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.527" (38.79mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | 环形端子 |
| 材料厚度 | 1.78 mm [ .07 in ] | 绝缘材料 - 类型 | No |
| 位数 | 1 | 镀层厚度（通用） | 7.62 |
| 外缘宽度 | 0.625" (15.88mm) | 筒体内径 | 9.39 mm [ .37 in ] |
| 螺纹/螺钉/孔尺寸 | 8.33 mm [ .328 in ] | 供应商器件封装 | SOLISTRAND |
| 线规或范围 - AWG | 52,600 â 83,700 | 线规或范围 - mm² | 34.00-35.00² [2] |
| 非扩张内径 | 9.39 mm [ .37 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Brazed Seam, Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 温度额定值 | 343 [650] | 工作温度 | 343 |
