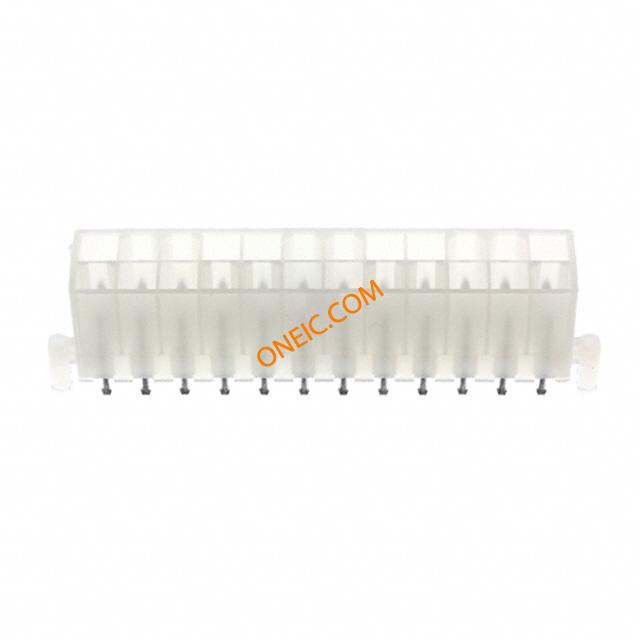

2-1586039-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 24POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 24P Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 24UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 24POS, 4.2MM HEADER,VERTICAL,VAL-U-LOK,24POS,DUALROW,UL94V-2,W/PEGS VAL-U-LOK 24 Position 4.2 mm Pitch Through-Hole Dual Row Straight Pin Header 24P VAL-U-LOK VRT HDR W/P V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 V | 最大额定电流 | 9 A |
| 最小供电电压 | 600VAC | ||
机械参数
| 深度 | 9.75 mm | 间距 | 4.2 mm |
| 高度 | 12.8 mm | 重量 | 0.01 |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 55.6 mm |
| 主要材料 | InterconnectSystem | 第一触头极性 | Pin (Male) |
| 触点数 | 6 | 位数 | 24 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 产品特性 | Board Lock |
| 制造商全称 | VAL-U-LOK | 产品子类型 | Pin Header |
| 端口数 | 1 Port | 电路数 | 24 |
| 加载位置数 | All | ||
