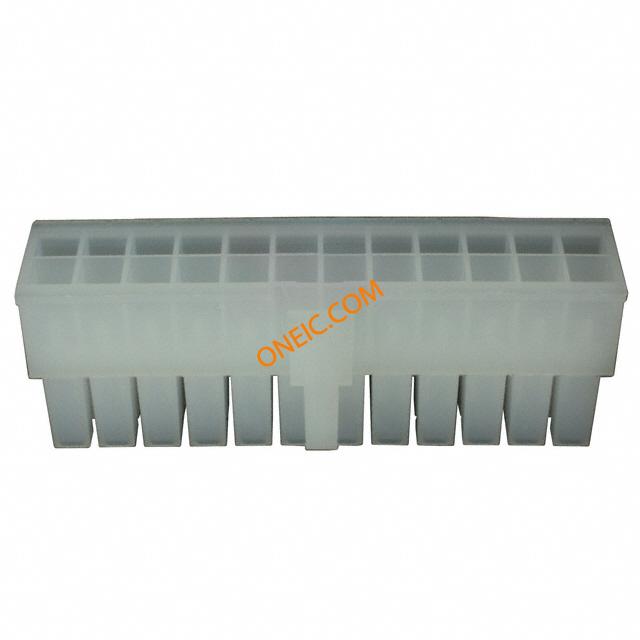

2-106527-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 24POS W/POSTIVE LOCK Pin & Socket Connectors 24P DUAC REC HSG Conn Housing RCP 24 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacle0 Power Positions24 Signal PositionsSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 24P DUAC REC HSG |
| 分类 |
商业参数
| 其他名称 | 21065274 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL档案号 | E28476 |
| 标准编号 | CSA, UL | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 额定交流电压 | 600 |
| 最大额定电流 | 9 A | ||
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 11.7 mm [ .46 in ] | 高度 | 18.8 mm [ .74 in ] |
| 长度 | 51.7 mm [ 2.04 in ] | 材料（通用） | 尼龙 6/6 |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 18-26 AWG | 排间距 | 0.165" (4.20mm) |
| 触头类型 | Female Socket | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 引脚数 | 0 | 排数 | 2 |
| 插入力 | 4 牛顿 | 壳体材料 | Nylon |
| 包装数量 | 1 | 端接样式 | 插座 |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 可密封 | 否 |
| 产品子类型 | Receptacle Housings | ||
环境参数
| 工作温度 | -55 – 105 | ||
