2-1445096-5

点击放大查看

2-1445096-5

制造商
TE Connectivity Ltd.

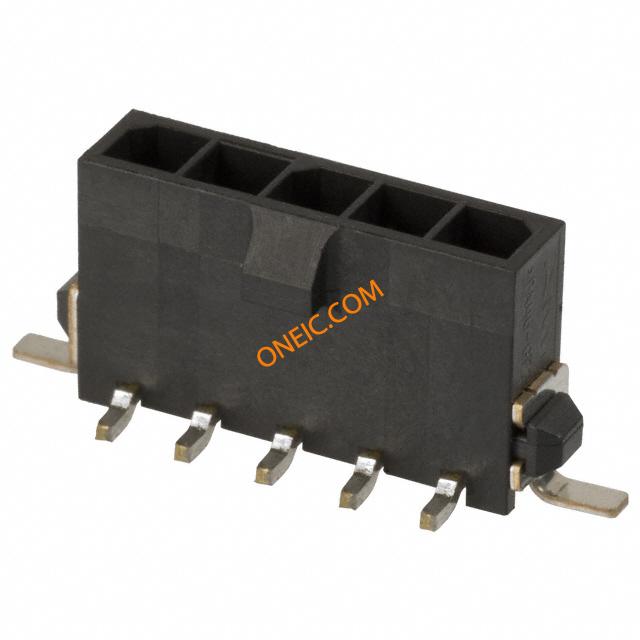

描述Conn Power HDR 5 POS 3mm Solder ST SMD 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS GOLD SMD Pin & Socket Connectors HDR VERT 5 POS 30 AU SINGLE ROW 2-1445096-5 MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

其他名称A34853CT标准包装规格210
产品类别Pin & Socket Connectors标准包装数量Tape & Reel
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
零件状态E28476无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
UL阻燃等级UL 94V-0认证机构标志是
材料阻燃等级UL 94V-0

电气参数

供电电压250最大额定电流5

机械参数

颜色Black间距3 mm
宽度9.24长度19
密封型不密封镀层Matte-Tin
包装方式Tape & Reel (TR)壳体颜色黑色
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Surface Mount连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Surface Mount引脚数5
排数Single高度（英寸）3.86
触头材料Brass壳体材料Nylon
框架材料Phosphor Bronze安装特性压紧柱体
包装数量210面板安装类型表面贴装
端接排数1.53 mm [ .06 in ]端接样式插针
第一触头极性Pin (Male)触点数5
位数5外壳尺寸-插件插头
安装孔直径带有中心触点材料3.00 [0.118]
接触件表面处理 - 配合锡典型触点布局直插式
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带

产品信息

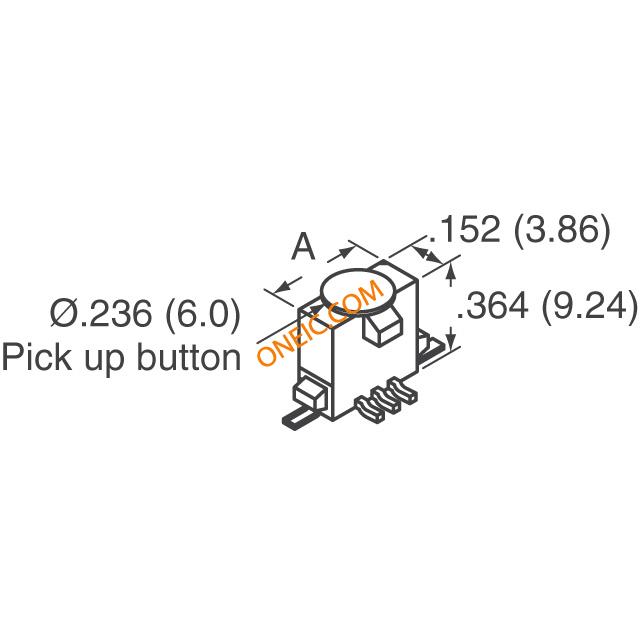

备注Vacuum pick-up button.类型Power
连接器性别HDR产品子类型Header Assembly
应用细节Power加载位置数All

环境参数

测试温度标准件 - 非灼热丝温度额定值High
工作温度-40 – 105 °C [ -40 – 221 °F ]封装热阻.062 mm [ 1.57 in ]
