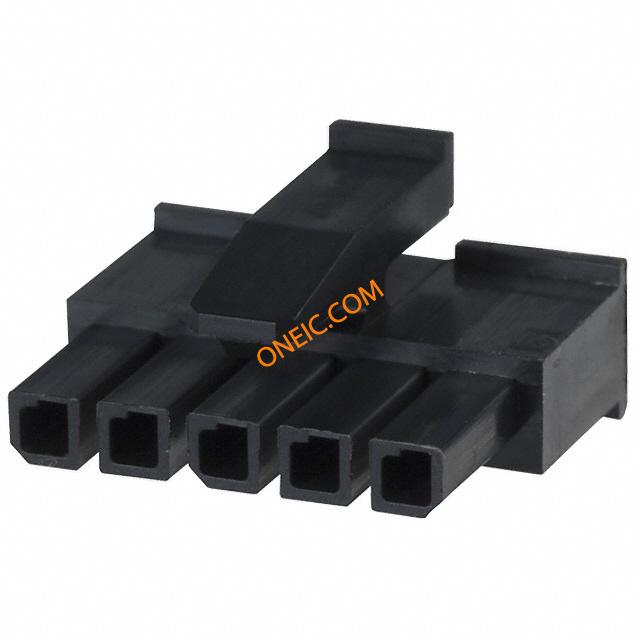

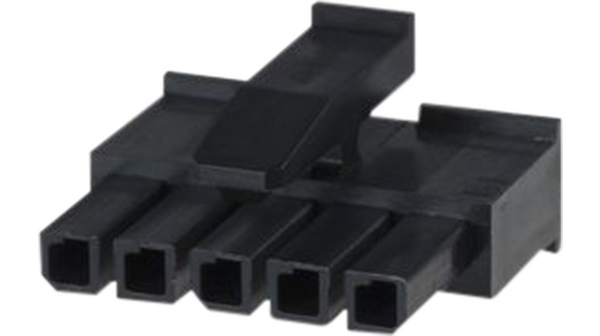

1445022-5

点击放大查看

1445022-5

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 5 POS 3mm ST 3mm Centerline, 250V, 5 A max. CONN RECEPT 3MM 5POS MATE-N-LOK 5 way 1 row receptacle Mate-N-Lok Pin & Socket Connectors RECPT SINGLE ROW 5P Conn Housing RCP 5 POS 3mm ST Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 5Number of Rows = Single3.00 mm CenterlineSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector RECEPTACLE, SINGLE ROW, 5WAY Connector,SoftShell;Nylon;Receptacle;Black;5;Single;0.118in.;UL94V-0 Crimp housing Pitch3 mm Poles 1 x 5 MATE-N-LOK Micro, 1445022-5, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm 节距 5 路 直 母 连接器外壳 MICRO MNL RFECEPT HSG SINGLE R
分类
连接器解决方案矩形连接器FPC/FFC矩形连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A30261产品类别Pin & Socket Connectors
标准包装数量Bulk工厂包装数量2000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free process认证机构:CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V接触电阻:20mohm
击穿电压:1500V最大额定电流5 A
绝缘电阻:1000Mohm最小供电电压250VAC

机械参数

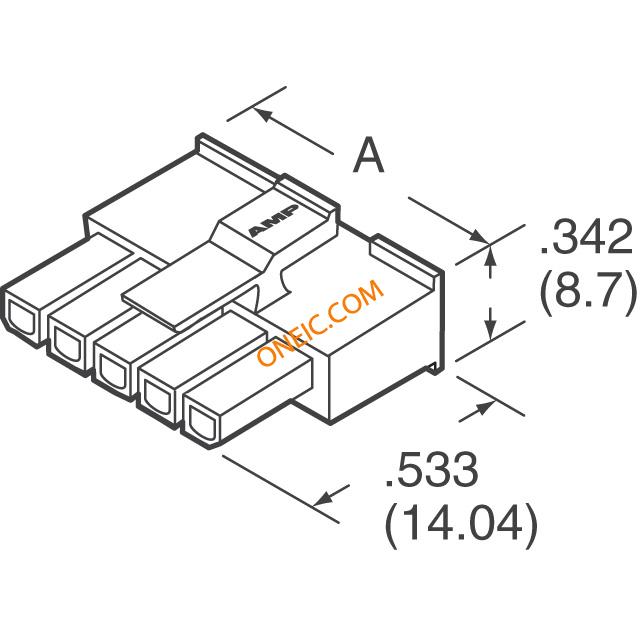

颜色Black深度14.04 mm
间距3 mm宽度8.7mm
高度8.7 mm长度16mm
重量0.002材料（通用）:Nylon
包装方式Bulk导线线规(20-24)/(26-30) AWG
触头类型Female Socket外壳颜色Black
安装类型Straight连接器类型Receptacle
紧固类型Latch Lock安装样式Wire
排数1封装形式Receptacle
触头材料Phosphor Bronze壳体材料Nylon
总长度16 mm端接样式Crimp
第一触头极性Socket (Female)连接器颜色:Black
触点数5接触件端接Crimp
位数5中心触点材料3.00 [0.118]
第一连接器安装类型:Socket

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列MATE-N-LOK
产品子类型Housing适用产品/相关产品Centerline Soft Shell Pin & Socket Connector

环境参数

工作温度-40C to 105C

文档与媒体

PDF 文档
1650928.pdf
在线文档
1445022-5?RQPN=1445022-5

相关型号

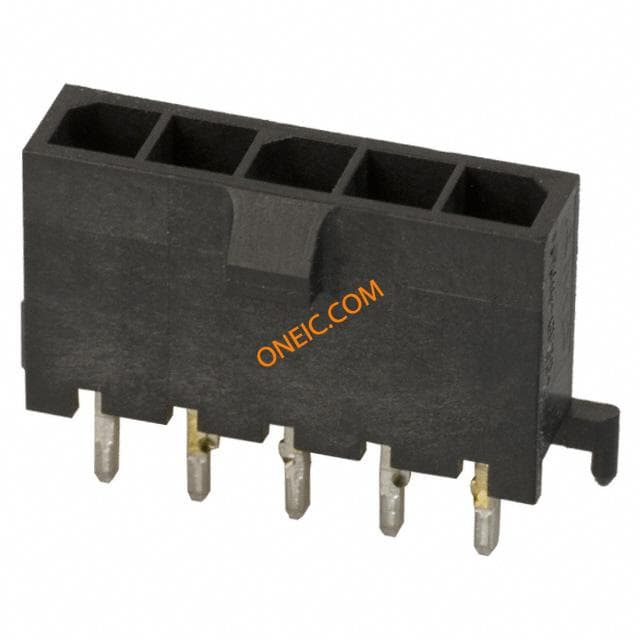

2-1445093-5

2-1445093-5

te connectivity / amp

Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS GOLD T/H Pin & Socket Connectors HDR VERT 5 POS 30 AU SINGLE ROW Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 5Number of Rows = SingleVertical Mount AngleMount Style = Through-HoleSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW AU LF

¥2.8368
详情
2-1445050-5

2-1445050-5

te connectivity / amp

Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS TIN T/H Pin & Socket Connectors HDR VERT 5 POS TIN SINGLE ROW Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector MICRO MNL HDR ASSY S/ROW LF

¥2.8368
详情

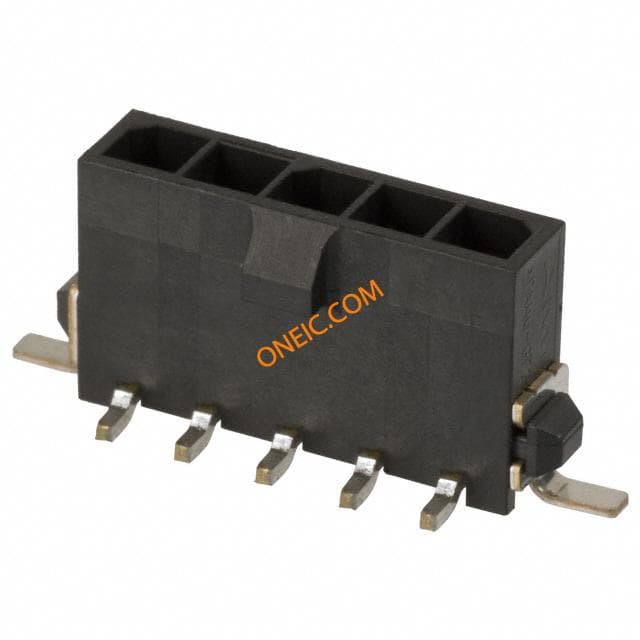

2-1445096-5

2-1445096-5

te connectivity / amp

Conn Power HDR 5 POS 3mm Solder ST SMD 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS GOLD SMD Pin & Socket Connectors HDR VERT 5 POS 30 AU SINGLE ROW 2-1445096-5 MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥6.4800
详情
1445050-5

1445050-5

te connectivity / amp

Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 5POS TIN T/H Pin & Socket Connectors HDR VERT 5 POS TIN SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW MICRO MNL HDR ASSY SINGLE ROW Search Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector

¥3.3120
详情

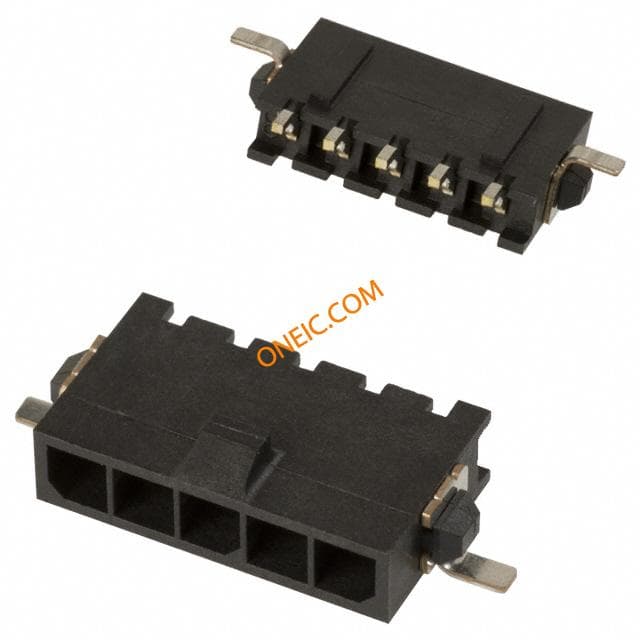

2-1445100-5
