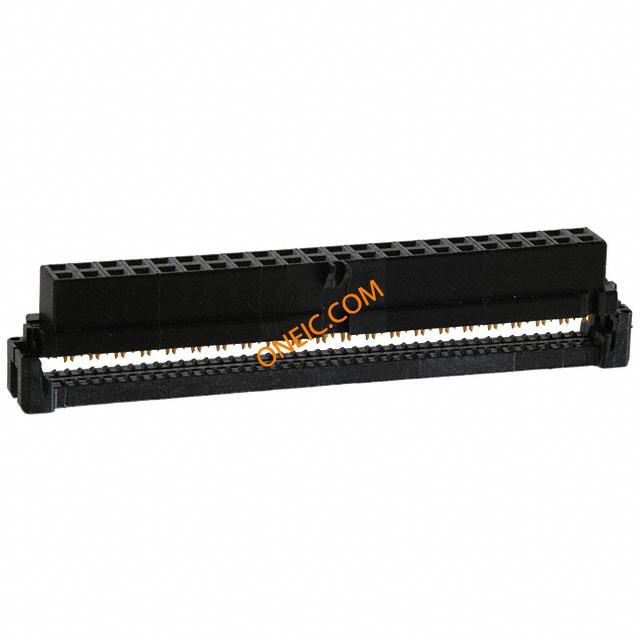

2-111623-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 44 POS 2mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT IDC 44POS 2MM POL GOLD Headers & Wire Housings 2MM REC 2X22P POLARIZED F/T Conn IDC Connector RCP 44 POS 2mm IDT RA Cable Mount Product Highlights:Connector Type = .079 [2.0mm] AMP-LATCH44 PositionsReceptacleMating Polarization Method = CenterWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, RECEPTACLE, 2MM, 44WAY CONNECTOR,RECEPTACLE,2MMAMP-LATCH,44POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP Latch 系列 2行 44路 2mm节距 母 IDC 连接器 , 电缆安装 44, 2MM, POL,30 DP, LEAD FREE |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85340011 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 30 V |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线类型 | Ribbon Cable | 出线方向 | Without |
| 导线线规 | 28 AWG | 排间距 | 0.079" (2.00mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | 2.00 x 2.00 [.079 x .079] | 极化 | Center |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | No | 电缆端类型 | Without |
| 连接器类型 | .079 [2.0mm] AMP-LATCH | 接触镀层 | Gold Over Nickel |
| 安装样式 | Wire | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Polyester |
| 安装特性 | Without | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 44 | 接触件端接 | :IDC / IDT |
| 位数 | 44 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 备注 | Accepts 28 AWG [0.08-0.09mm²] ribbon cable, 0.61-0.97 [.024-.038] thick PVC 1. | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMP-LATCH |
| 产品特性 | Feed Through, Polarizing Key | 盖类型 | Feed Thru |
| 制造商全称 | AMP-LATCH | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Ribbon Cable | 带调制解调器控制 | Yes |
| 应用细节 | Wire-to-Board | ||
