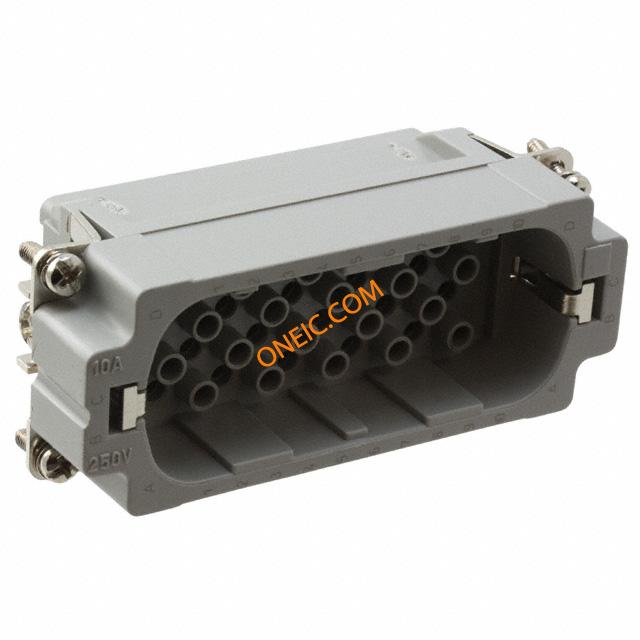

2-1103110-3

点击放大查看

2-1103110-3

制造商
TE Connectivity Ltd.
描述Conn Housing M 40 POS Crimp ST Panel Mount Loose Piece Heavy Duty Connectors CONN PIN INSERT 40+PE POS CRIMP Heavy Duty Power Connectors HN.D.40.STI.C Conn Housing M 40 POS Crimp ST Panel Mount Loose Piece Product Highlights:HN.D.40 SeriesInsertProduct Size = 6Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HN.D.40.Sti.C
分类
连接器解决方案重载连接器重载连接器

商业参数

产品类别Heavy Duty Power Connectors标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant材料阻燃等级UL94 V-0

电气参数

额定电压250V极数40+PE
供电电压250最大额定电流10A
开路电压250.0短路电流10.0

机械参数

尺寸6颜色Gray
材料（通用）生产控制包装方式Bulk
触头类型HTS HN.D极化3
安装类型Straight连接器类型Insert without Contacts
排数4插入件材料插针
壳体材料Polycarbonate (PC)包装数量Loose Piece
端接样式Crimp触点数40
位数40+Ground外壳尺寸-插件否
典型触点布局Crimp Terminal

产品信息

备注Use two 40 position inserts to form 80 position insert. / Use with HN.D Series c类型Housing
连接器性别M系列HN.D.40
制造商全称HTS产品子类型Insert
其他规格Pin

环境参数

工作温度-40°C ~ 125°C

文档与媒体

1103110 Drawing
